Product Details
Place of Origin: Wuhan
Certification: CE UL ISO9001 ISO14001
Model Number: 6GFM-150F
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Carton and Wooden Pallet
Delivery Time: 30DAYS
Payment Terms: T/T L/C, D/A, D/P
Supply Ability: 10000PCS/30Days
Type: |
AGM Front Access Battery |
Nominal Voltage: |
12V |
Rated Capacity: |
150AH |
Battery Case: |
ABS |
Battery Designed Life: |
12 Years |
Approx Weight: |
44KG |
Application: |
Telecommunications, UPS Systems And Other Back Up Applications |
Screw Hole Size: |
M6 |
Type: |
AGM Front Access Battery |
Nominal Voltage: |
12V |
Rated Capacity: |
150AH |
Battery Case: |
ABS |
Battery Designed Life: |
12 Years |
Approx Weight: |
44KG |
Application: |
Telecommunications, UPS Systems And Other Back Up Applications |
Screw Hole Size: |
M6 |

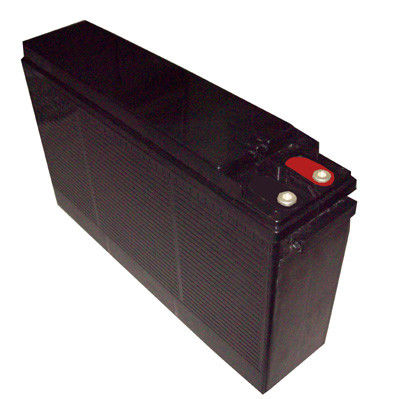

12V150AH AGM Lead Acid Battery AGM Front Access Battery 12V Series Front Terminal
Product features
The Front Access Series Battery is especially designed for telecommunication use with 12 years design life in float service. By combining the newly developed paste formula with up-to-date AGM structures, this range features 12 years design life and Front Access connection for fast, easy installation and maintenance.
Product Structure and Working Principle
Cathode absorption sealed maintenance-free VRLA battery consists of ABS case,grid type plate, AGM separator and electrolyte.
Specification
| Type | AGM Front Access Battery |
| Nominal Voltage | 12V |
| Rated Capacity | 150Ah(20 Hr,1.8V/cell,25℃) |
|
Approx Dimensions(mm) (Length×Width×Height) |
565(mm)×110(mm)×288(mm) |
| Battery designed life | 12 years |
| Approx Weight(kg) | 44kg |
| Applicable Temperature | -40℃～60℃ |
| Optimum Temperature | 20℃～25℃ |
| Self-discharge | Self-discharge rate＜0.1% per day ( 20℃ ) |
| Materials for Battery Containers and Covers | ABS |
| Screw Hole Size (mm) | M6 |
Constant Currant Discharge Ratings-amperes at 25°C
| F.V/Time | 15min | 30min | 1h | 2h | 3h | 4h | 5h | 6h | 8h | 10h | 20h |
| 1.6V |
285 |
169.5 |
102.9 |
62.55 |
44.4 |
34.8 | 28.5 | 24.45 | 18.75 | 15.6 | 8.25 |
| 1.65V | 279 | 168 | 101.85 | 62.1 | 44.1 | 34.65 | 28.35 | 24.3 | 18.75 | 15.6 | 8.25 |
| 1.7V | 268.5 | 163.5 | 100.2 | 61.2 | 43.5 | 34.2 | 28.05 | 24 | 18.6 | 15.45 | 8.25 |
| 1.75V | 253.5 | 157.5 | 97.65 | 59.7 | 42.6 | 33.6 | 27.75 | 23.7 | 18.45 | 15.3 | 8.1 |
| 1.8V | 229.5 | 148.95 | 93.75 | 57.3 | 41.25 | 32.7 | 27.15 | 23.25 | 18.15 | 15 | 7.95 |
Constant Power Discharge Ratings-watts at 25°C
| F.V/Time | 15min | 30min | 1h | 2h | 3h | 4h | 5h | 6h | 8h | 10h | 20h |
| 1.6V | 427.5 | 303 | 190.5 | 117.3 | 85.35 | 67.65 | 56.25 | 48 | 37.05 | 30.3 | 16.2 |
| 1.65V | 423 | 301.5 | 189 | 116.55 | 84.9 | 67.35 | 55.95 | 47.85 | 36.9 | 30.3 | 16.2 |
| 1.70V | 414 | 298.5 | 187.5 | 115.35 | 83.85 | 66.75 | 55.5 | 47.4 | 36.6 | 30 | 16.2 |
| 1.75V | 400.5 | 292.5 | 184.5 | 113.4 | 82.35 | 65.7 | 54.75 | 46.95 | 36.3 | 29.7 | 16.05 |
| 1.8V | 381 | 282 | 180 | 110.55 | 80.25 | 64.2 | 53.55 | 46.05 | 35.7 | 29.25 | 15.75 |
Application Fields
This series is highly suited for telecom applications, UPS systems and other back up applications. Uninterruptible power supplies, communication equipment, electronic cash register, microprocessor based office machine.
Advantages
1. Long Life: 12 years design life in floating condition
2. Wide operating temperature range: from -15°C to 60℃
3. Advanced paste formula with increased recharge efficiency
4. Front access terminal with standard width for 19” and 23” ETSI racks
5. 30% decreased float current lead to excellent high temperature resistance
6. Thick flat plate with high Tin low Calcium alloy
7. Low self-discharge rate
8. Excellent deep discharge recovery capability
