Product Details
Place of Origin: Wuhan
Certification: CE, ROHS, UN38.3
Model Number: LSC14250
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Carton
Delivery Time: 20 Days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10000PCS/30Days
Product System: |
Lithium Super-Capacitor Cell |
Nominal Capacity(3.67V): |
216AS |
Nominal Voltage: |
3.67V |
Internal Resistance: |
≤250mΩ |
Operating Temperature: |
﹣40℃～+85℃ |
Weight: |
About 11g |
Applications: |
Intelligent And Instrument Area, Remote/Wireless, Intelligent Fire Control System |
Product System: |
Lithium Super-Capacitor Cell |
Nominal Capacity(3.67V): |
216AS |
Nominal Voltage: |
3.67V |
Internal Resistance: |
≤250mΩ |
Operating Temperature: |
﹣40℃～+85℃ |
Weight: |
About 11g |
Applications: |
Intelligent And Instrument Area, Remote/Wireless, Intelligent Fire Control System |

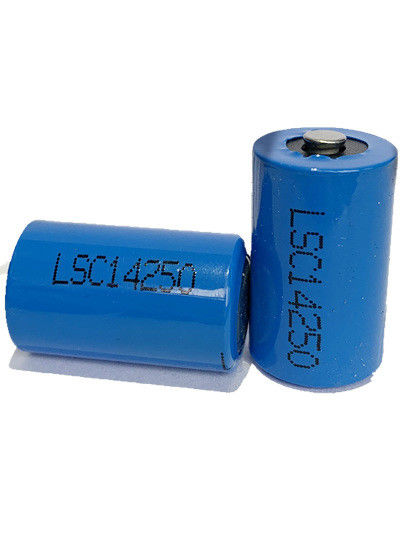

LSC14250 Lithium Ion Battery Lithium Super-Capacitor Cell Lithium Super Capacitor Lithium Ion Secondary Battery
Product Features
The Lithium super capacitor is a composite super-capacitor fabricated by hybrid lithium ion secondary batteries electrode materials, including graphite, lithium cobalt oxide, lithium iron phosphate, and metal oxides, with an activated porous carbon with high specific surface area. Due to the addition of lithium-ion batteries electrode materials, the energy storage mechanism of the composite super-capacitors is no longer the traditional nonaradic double-layer charge storage mechanism. This design would demonstrate higher energy density than a traditional double-layer capacitor,and higher power density than a rechargeable battery. And ensure the high energy, high power and long cycle life.
Performance Data
| Product System | Lithium Super-Capacitor Cell |
| Model | LSC14250 |
| Nominal Capacity(3.67V) | 216AS |
| Nominal Voltage | 3.67V |
| Internal Insistance | ≤250mΩ |
| Max. Continuous Discharge Current | 800mA |
| Max. Pluse Current | 2600mA |
| Max. Charge Current | 60mA |
| Max. Charge Voltage | 4.0V |
| Discharge End Voltage | 2.5V |
| Operating emperature | ﹣40℃～+85℃ |
| Weight | About 11g |
Characteristic Curve
Advantages
1. It can realize instantaneous large current discharge
2. Long-life energy storage device
3. Fully sealed structure and wide working tem perature range,
4. Suitable for long-term use in harsh environments.
