Product Details
Place of Origin: Wuhan
Certification: CE UL ISO9001 ISO14001
Model Number: OPzV12-200
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Carton and Wooden Pallet
Delivery Time: 30 Days
Payment Terms: T/T L/C, D/A, D/P
Supply Ability: 10000PCS/30Days
Type: |
Tubular Gel Battery |
Nominal Voltage: |
12 (6 Cells Per Unit) |
Rated Capacity: |
200Ah |
Battery Case: |
ABS |
Battery Designed Life: |
More Than 20 Years |
Approx Weight: |
70 Kg (154.3 Lbs) |
Terminal Type: |
Female Copper Insert M8 (torque:10~12N.m) |
Application: |
Telecom Outdoor Applications, Renewable Energy Systems And Other Harsh Environment Applications. |
Type: |
Tubular Gel Battery |
Nominal Voltage: |
12 (6 Cells Per Unit) |
Rated Capacity: |
200Ah |
Battery Case: |
ABS |
Battery Designed Life: |
More Than 20 Years |
Approx Weight: |
70 Kg (154.3 Lbs) |
Terminal Type: |
Female Copper Insert M8 (torque:10~12N.m) |
Application: |
Telecom Outdoor Applications, Renewable Energy Systems And Other Harsh Environment Applications. |

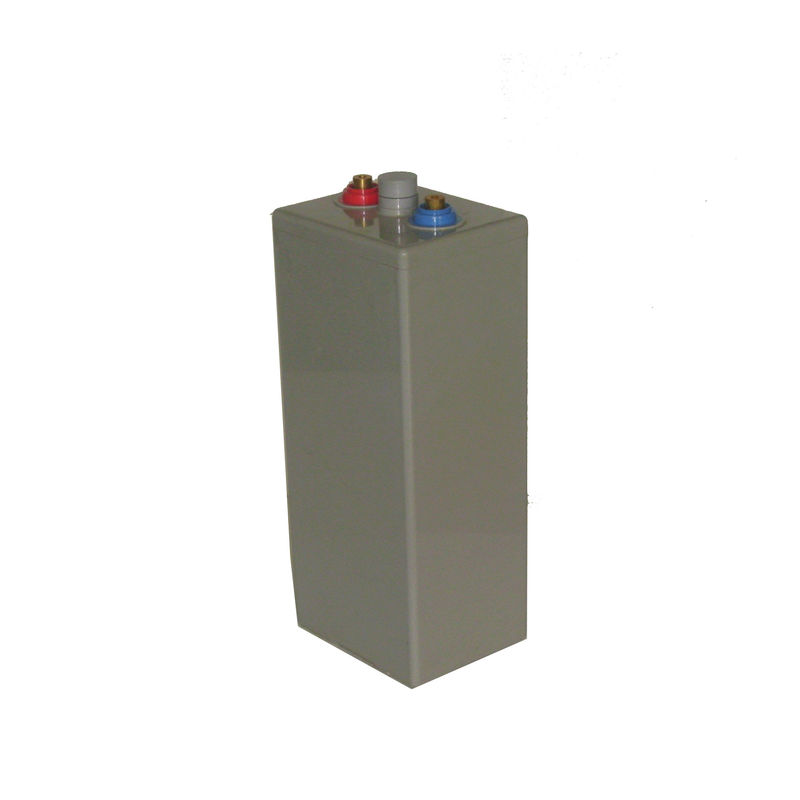

12V200Ah Tubular Gel Battery OPzV Battery Deep Cycle Gel Battery Pure Gel Battery
Product Features
The OPzV series adopts an Immobilized Gel and Tubular Positive Plate technology. It offers high reliability and stable performance. By using diecasted positive grid and patented active material formula, it exceeds the DIN standard values and offer 20+ years design life in float service. It is very suitable for cyclic use under extreme operating conditions.
Positive plate :Tubular plate with die cast Pb-Ca alloy grid
Negative plate : Balanced Pb-Ca grid for improved recombination efficiency
Separator : leaf shape polymer separator
Electrolyte : Dilute high purity sulphuric acid with fumed Silica gel
Battery container and cover : ABS
Pillar seal: 100% factory tested, proven two layers epoxy resin seal
Relief valve : Complete with integrated flame arrestor
Specifications
| Nominal Voltage (V) | 12 (6 cells per unit) |
| Designed Floating Life (20oC) | 20 Years |
| Nominal Capacity (20oC) | 200 Ah @ 10HR-rate (to 1.80Vpc) |
| Dimension (mm) | L522mm x W270mm x H243mm |
| Approx. Weight | 70 kg (154.3 lbs) |
| Terminal Type | Female Copper Insert M8 (torque:10~12N.m) |
| Internal Resistance | Approx. 0.006 Ohm (fully charged @ 20°C) |
| Max. Charge Current | 50 A |
| Max. Discharge Current (5S) | 1000 A |
| Short Circuit Current | 4000 A |
| Self Discharge | Approx. 3% per month @ 20°C |
|
Ambient Temperature |
Discharge: -20~60°C Charge: -20~60°C Storage: -20~45°C |
| Float Charge Voltage (20~25oC) | 13.5-13.7V (-3mV/ cell/ °C) |
| Equalize and cycle Use Charge Voltage (20~25°C) | 14.1-14.5V (-5mV/ cell / °C) |
| Container Material | ABS (UL94-V0 optional) |
DIMENSIONS
BATTERY DISCHARGE TABLE PARAMETERS FOR SOLAR & WIND APPLICATIONS
CHARACTERISTICS
Application
Telecom outdoor applications, renewable energy systems, other harsh environment applications.
Advantages
1. 20+ years design life at floating condition.
2. Wide operating temperature range from -40C to 60C.
3. Tubular positive plate with prolonged cycle life.
4. Nano Silica gel electrolyte.
5. Lead Calcium die cast grid with improved corrosion resistance capability.
6. Excellent deep discharge recovery capability.
