Product Details
Place of Origin: Wuhan
Certification: CE UL ISO9001 ISO14001
Model Number: OPzV12-80
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Carton and Wooden Pallet
Delivery Time: 30 Days
Payment Terms: T/T L/C, D/A, D/P
Supply Ability: 10000PCS/30Days
Type: |
Tubular Gel Battery |
Nominal Voltage: |
12V |
Rated Capacity: |
80Ah |
Battery Case: |
ABS |
Battery Designed Life: |
More Than 20 Years |
Approx Weight: |
30.5Kg |
Terminal Type: |
Female Copper Insert M8 (torque:10~12N.m) |
Application: |
Medical Equipment, Telecommunications, UPS Cable Television, Railroad Utility Electric Utility, Photovoltaic System, Control Equipment, Alternative Energy System, Security System |
Dimension: |
328*172*222mm |
Type: |
Tubular Gel Battery |
Nominal Voltage: |
12V |
Rated Capacity: |
80Ah |
Battery Case: |
ABS |
Battery Designed Life: |
More Than 20 Years |
Approx Weight: |
30.5Kg |
Terminal Type: |
Female Copper Insert M8 (torque:10~12N.m) |
Application: |
Medical Equipment, Telecommunications, UPS Cable Television, Railroad Utility Electric Utility, Photovoltaic System, Control Equipment, Alternative Energy System, Security System |
Dimension: |
328*172*222mm |

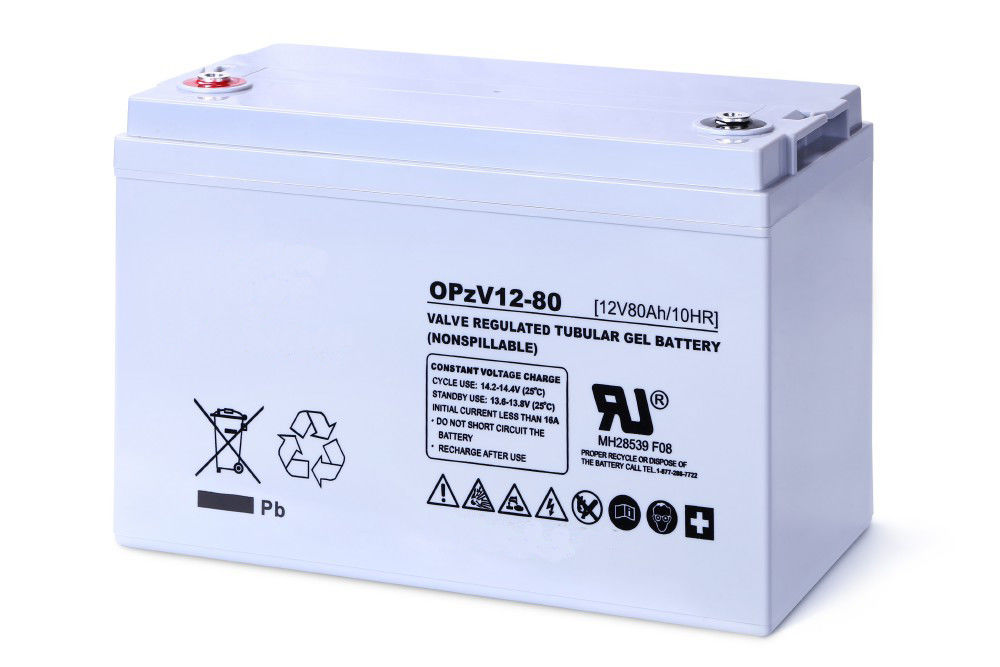

12V80Ah Tubular Gel Battery OPzV Battery Deep Cycle Gel Battery Pure Gel Battery
Product Features
The OPzV series adopts an Immobilized Gel and Tubular Positive Plate technology. It offers high reliability and stable performance. By using diecasted positive grid and patented active material formula, it exceeds the DIN standard values and offer 20+ years design life in float service. It is very suitable for cyclic use under extreme operating conditions.
Positive plate :Tubular plate with die cast Pb-Ca alloy grid
Negative plate : Balanced Pb-Ca grid for improved recombination efficiency
Separator : leaf shape polymer separator
Electrolyte : Dilute high purity sulphuric acid with fumed Silica gel
Battery container and cover : ABS
Pillar seal: 100% factory tested, proven two layers epoxy resin seal
Relief valve : Complete with integrated flame arrestor
Specifications
| Nominal Voltage (V) | 12 |
| Designed Floating Life (20oC) | 20+ Years |
| Nominal Capacity (20oC) | 80 Ah @ C10 (to 1.80Vpc) |
| Demensions | L328mm×W172mm×H222mm |
| Approx. Weight | 30.5kg |
| Terminal Type | Female Copper Insert M8 (torque:10~12N.m) |
| Separator | PVC-SiO2 |
| Self Discharge | Approx. 2% per month @ 20°C |
|
Ambient Temperature |
Discharge: -40~65°C Charge: -30~65°C Storage: -25~45°C |
| Float Charge Voltage | 13.5V~13.7V@25oC (-3mV / oC/ cell) |
| Equalize Charge Voltage | 14.1V~14.5V @25oC(-5mV / oC/ cell) |
| Container Material | ABS(UL94-V0 optional) |
Application
Telecom outdoor applications, renewable energy systems, other harsh environment applications. Medical Equipment, Telecommunications, UPS Cable Television, Railroad Utility Electric Utility, Photovoltaic System, Control Equipment, Alternative Energy System, Security System
Advantages
1. 20+ years design life at floating condition.
2. Wide operating temperature range from -40C to 60C.
3. Tubular positive plate with prolonged cycle life.
4. Nano Silica gel electrolyte.
5. Lead Calcium die cast grid with improved corrosion resistance capability.
6. Excellent deep discharge recovery capability.
