Product Details
Place of Origin: Wuhan
Brand Name: FBATTERY
Certification: CE UL ISO9001 ISO14001
Model Number: GFMJ-500
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Carton and Wooden Pallet
Delivery Time: 30DAYS
Payment Terms: T/T L/C, D/A, D/P
Supply Ability: 10000PCS/30Days
Type: |
Gel Deep Cycle Battery |
Nominal Voltage: |
2V |
Rated Capacity: |
500AH |
Battery Case: |
ABS |
Battery Designed Life: |
12 Years |
Approx Weight: |
31.5KG |
Screw Hole Size: |
M8 |
Application: |
Solar Power Storage System, Wind Energy Storage System, Renewable Energy Storage System |
Maintenance Type: |
Free |
Terminal: |
Copper Terminal |
Type: |
Gel Deep Cycle Battery |
Nominal Voltage: |
2V |
Rated Capacity: |
500AH |
Battery Case: |
ABS |
Battery Designed Life: |
12 Years |
Approx Weight: |
31.5KG |
Screw Hole Size: |
M8 |
Application: |
Solar Power Storage System, Wind Energy Storage System, Renewable Energy Storage System |
Maintenance Type: |
Free |
Terminal: |
Copper Terminal |

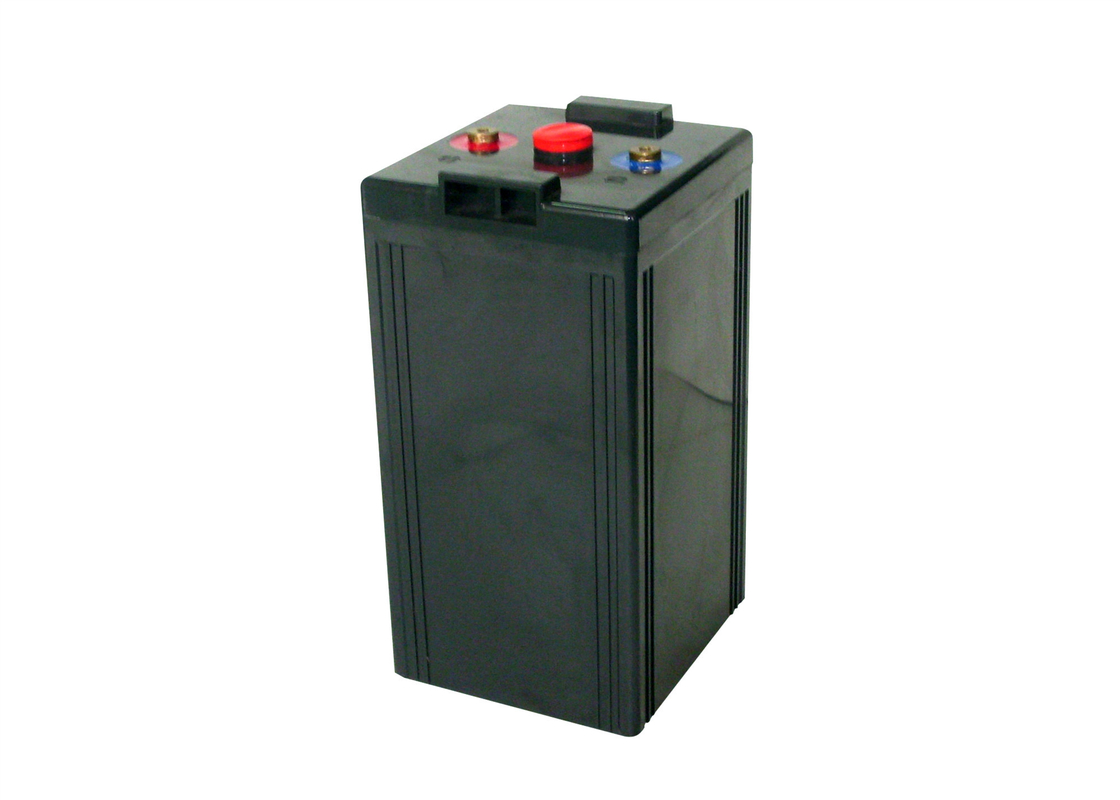

2V500AH Gel Deep Cycle Battery VRLA Gel Electrolyte Battery 2V Storage Power
Product Introduction
Product Features
Specification
| Type | Gel Deep Cycle Battery |
| Nominal Voltage | 2V |
| Rated Capacity | 500Ah@10HR-rate (to 1.80Vpc) |
|
Approx Dimensions(mm) (Length×Width×Height) |
L240mm x W175mm x H353mm |
| Battery designed life | 12 years |
| Approx Weight(kg) | 31.5kg |
| Applicable Temperature | -40℃～60℃ |
| Optimum Temperature | 20℃～25℃ |
| Self-discharge | Self-discharge rate＜0.1% per day ( 20℃ ) |
| Materials for Battery Containers and Covers | ABS |
| Terminal Type (mm) |
Φ20 Copper terminal,M8 female screw thread |
Characteristic
20hr(53A): 530Ah 10hr(100A): 500Ah 3hr (250A): 375Ah |
Float Charge: 2.25±0.02V(-3mV/℃) ≥24h Boost Charge: 2.33±0.03V(-3mV/℃) 16-24h Max. Charge Current: 125A |
Optimal Ambient Temperature: 20～25℃ |
|
40℃: ～105% 25℃: ～100% 0 ℃: ～83% |
After 1 Month: ≥97% After 3 Months: ≥90% After 6 Months: ≥80% |
Application Fields
This series is suit for energy storage for renewable energies such as PV, wing turbine power systems and CATV.
Advantages
1. Long Life: 12 years design life in floating condition.
2. Up to 5 years design life at renewable energy applications according to IEC61427.
3. Wide operating temperature range from -25°C to 65℃.
4. Nano gel electrolyte eliminate the acid stratification and prolong cycle life.
5. Round trip efficiency as high as 85%.
6. Thick positive flat plate design with high Tin low Calcium alloy and high density paste.
7. Low self-discharge rate and long shelf life (9 months at 20℃).
8. Excellent deep discharge recovery capability.
