Product Details
Place of Origin: Wuhan
Brand Name: FBATTERY
Certification: CE UL ISO9001 ISO14001
Model Number: 6GFM-80F
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Carton and Wooden Pallet
Delivery Time: 30DAYS
Payment Terms: T/T L/C, D/A, D/P
Supply Ability: 10000PCS/30Days
Type: |
12V 80AH Front Terminal AGM Battery |
Nominal Voltage: |
12Volt |
Rated Capacity: |
80AH |
Battery Case: |
ABS |
Approx Weight: |
26.8KG |
Application: |
Telecom Outdoor Applications |
Screw Hole Size: |
M8 Insert, Front Access Terminal |
Dimension: |
L508*W110*H229mm |
Type: |
12V 80AH Front Terminal AGM Battery |
Nominal Voltage: |
12Volt |
Rated Capacity: |
80AH |
Battery Case: |
ABS |
Approx Weight: |
26.8KG |
Application: |
Telecom Outdoor Applications |
Screw Hole Size: |
M8 Insert, Front Access Terminal |
Dimension: |
L508*W110*H229mm |

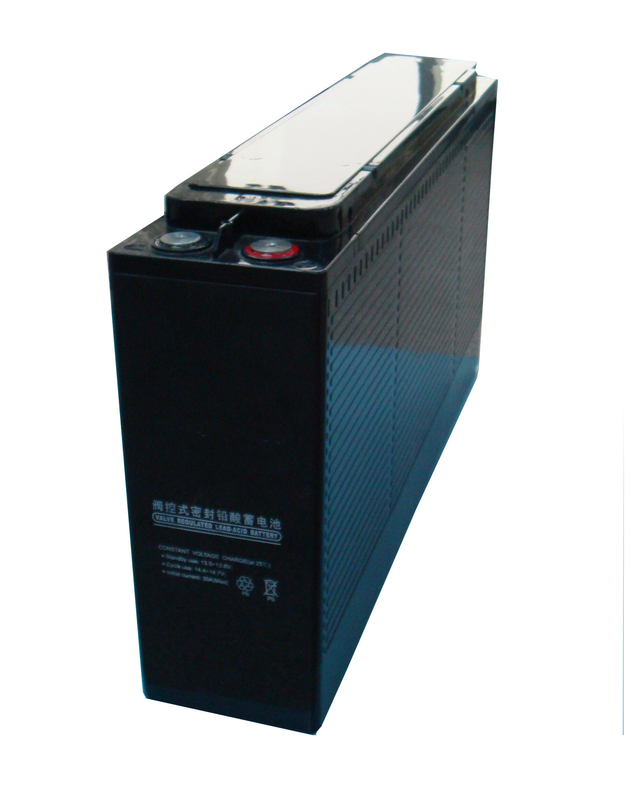

12V 80AH Front Terminal AGM Battery Telecom Outdoor Applications
Introduction of Front Terminal AGM Battery
Front Terminal AGM Battery are designed with AGM (Absorbent Glass Mat) technology, high performance plates and electrolyte to gain extra power output for common power backup system applications widely used in the field of UPS, Emergency Lighting System.
Front Terminal AGM Battery features
The Front Access Series Battery is especially designed for telecommunication use with 12 years design life in float service. By combining the newly developed paste formula with up-to-date AGM structures, this range features 12 years design life and Front Access connection for fast, easy installation and maintenance.
Front Terminal AGM Battery Structure and Working Principle
Cathode absorption sealed maintenance-free VRLA battery consists of ABS case,grid type plate, AGM separator and electrolyte.
Specification of Front Terminal AGM Battery
| Battery Type | VRLA Battery |
| Nominal Voltage | 12V |
| Number of cell | 6 cells |
| Nominal Capacity | 80Ah (10hr, 1.80V/ cell, 25°C) |
| Approx Weight (kg) | 28.6 Kg |
|
Designed Life(Float Charge 20°C) |
12 Years |
| Short Circuit Current | 1850 A |
|
Operation Ambient Temperature |
-20°C ~ 55°C |
|
Optimal Ambient Temperature |
20°C ~ 25°C |
| Internal Resistance | 6.5mΩ |
| Self-discharge | max 3% per month @20°C |
| Max Charge Current | 21A |
| Max Discharge Current | 850A(5S) |
| Container Material | ABS |
| Terminal (mm) | M8 female, front access terminal |
Constant Currant Discharge Ratings-amperes at 25°C
Constant Power Discharge Ratings-watts at 25°C
Application Fields
It highly suited to telecom outdoor applications, renewable energy systems and ohter harsh environment application.
Advantages
1. Long Life: 12 years design life in floating condition
2. Wide operating temperature range: from -15°C to 60℃
3. Advanced paste formula with increased recharge efficiency
4. Front access terminal with standard width for 19” and 23” ETSI racks
5. 30% decreased float current lead to excellent high temperature resistance
6. Thick flat plate with high Tin low Calcium alloy
7. Low self-discharge rate
8. Excellent deep discharge recovery capability
