Product Details
Place of Origin: Wuhan
Brand Name: FBATTERY
Certification: CE UL ISO9001 ISO14001
Model Number: GFMJ-300
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Carton and Wooden Pallet
Delivery Time: 30DAYS
Payment Terms: T/T L/C, D/A, D/P
Supply Ability: 10000PCS/30Days
Type: |
2 Volt 300AH Gel Deep Cycle Battery |
Nominal Voltage: |
2V |
Rated Capacity: |
300AH |
Battery Case: |
ABS |
Battery Designed Life: |
12 Years |
Screw Hole Size: |
M8 |
Application: |
UPS System, Telecom, Solar Power Storage System, Wind Energy Storage System, Renewable Energy Storage System |
Maintenance Type: |
Free |
Terminal: |
Copper Terminal |
Type: |
2 Volt 300AH Gel Deep Cycle Battery |
Nominal Voltage: |
2V |
Rated Capacity: |
300AH |
Battery Case: |
ABS |
Battery Designed Life: |
12 Years |
Screw Hole Size: |
M8 |
Application: |
UPS System, Telecom, Solar Power Storage System, Wind Energy Storage System, Renewable Energy Storage System |
Maintenance Type: |
Free |
Terminal: |
Copper Terminal |

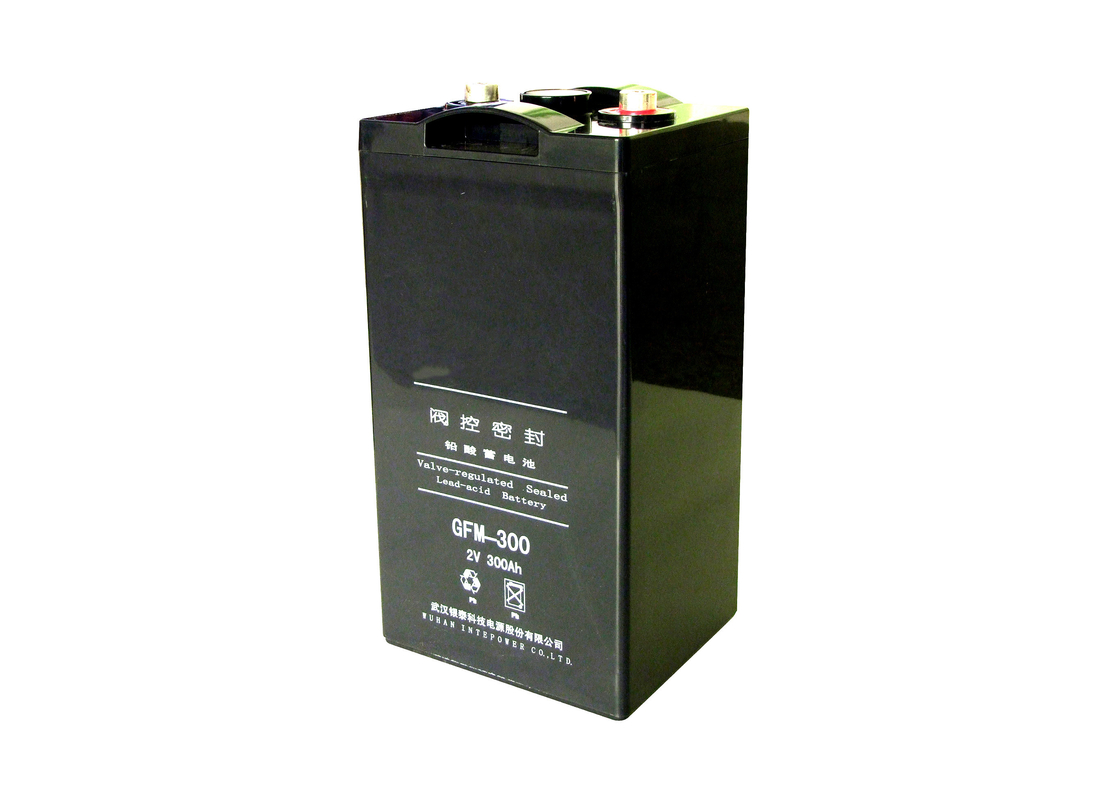

Solar 2 Volt 300AH Gel Deep Cycle Battery Rechargeable Long Life
2 Volt 300AH Gel Deep Cycle Battery FEATURES
1. The weight and volume are high, the internal resistance is small, and the
output power is high.
2. The self discharge is small, and the average monthly discharge rate is less
than 3% at 20℃.
3. Unique formula, deep discharge recovery excellent performance.
4. Adopt high purity raw materials and strict process control to ensure the
consistency of the products.
2 Volt 300AH Gel Deep Cycle Battery Specification
| Type | Gel Deep Cycle Battery |
| Nominal Voltage | 2V |
| Rated Capacity | 300Ah@10HR-rate (to 1.80Vpc) |
|
Approx Dimensions(mm) (Length×Width×Height) |
L170mm x W150mm x H330mm |
| Battery designed life | 12 years |
| Approx Weight(kg) | 19.4kg |
| Applicable Temperature | -40℃～60℃ |
| Optimum Temperature | 20℃～25℃ |
| Self-discharge | Self-discharge rate＜0.1% per day ( 20℃ ) |
| Materials for Battery Containers and Covers | ABS |
| Terminal Type (mm) |
Φ20 Copper terminal, M8 female screw thread |
Characteristic
20hr(15.9A): 318Ah 10hr(30A): 300Ah 3hr (75A): 225Ah |
Float Charge: 2.25±0.02V(-3mV/℃) ≥24h Boost Charge: 2.33±0.03V(-3mV/℃) 16-24h Max. Charge Current: 100A |
Optimal Ambient Temperature: 20～25℃ |
|
40℃: ～105% 25℃: ～100% 0 ℃: ～83% |
After 1 Month: ≥97% After 3 Months: ≥90% After 6 Months: ≥80% |
Application Fields
This series is suit for energy storage for renewable energies such as PV, wing turbine power systems and CATV.
