Product Details
Place of Origin: Wuhan
Brand Name: FBATTERY
Certification: CE UL ISO9001 ISO14001
Model Number: 6GFMJ-100
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Carton and Wooden Pallet
Delivery Time: 30DAYS
Payment Terms: T/T L/C, D/A, D/P
Supply Ability: 10000PCS/30Days
Type: |
12v 100ah Gel Deep Cycle Battery |
Nominal Voltage: |
12Volt |
Rated Capacity: |
100AH |
Battery Case: |
ABS |
Battery Designed Life: |
12 Years |
Approx Weight: |
31KG |
Screw Hole Size: |
M8 |
Application: |
Photovoltaic System, Hybrid Power System |
Type: |
12v 100ah Gel Deep Cycle Battery |
Nominal Voltage: |
12Volt |
Rated Capacity: |
100AH |
Battery Case: |
ABS |
Battery Designed Life: |
12 Years |
Approx Weight: |
31KG |
Screw Hole Size: |
M8 |
Application: |
Photovoltaic System, Hybrid Power System |

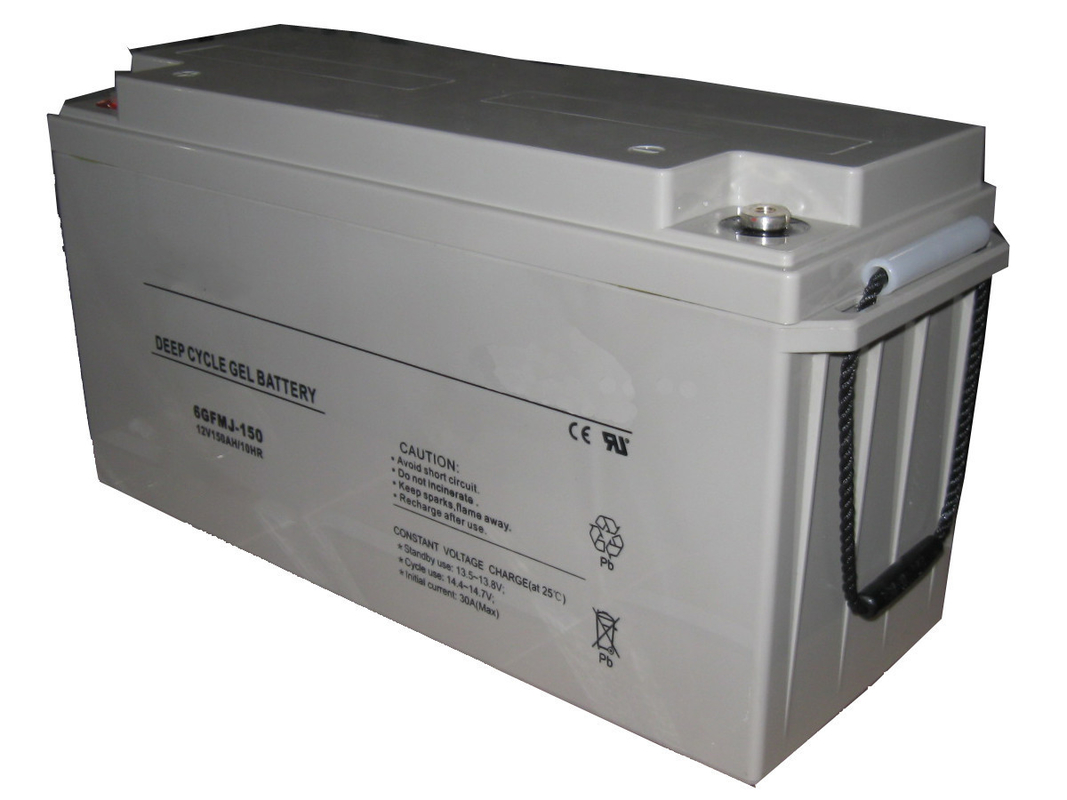

ABS Case 12v 100ah Gel Deep Cycle Battery In Photovoltaic System
12v 100ah Gel Deep Cycle Battery Application Fields
Home Appliances, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies
Product Structure and Working Principle
Positive plate : Thick high Sn low Ca grid with high density paste
Negative plate : Over designed capacity to overcome sulphation in low SOC Separator :Advanced AGM
separator
Electrolyte : Dilute high purity sulphuric acid with nano gel Battery container and cover :ABS
Pillar seal : 100% factory tested, proven two layers epoxy resin seal Relief valve : Complete with
integrated flame arrestor
12v 100ah Gel Deep Cycle Battery Specification
| Type | 12v 100ah Gel Deep Cycle Battery |
| Nominal Voltage | 12V |
| Rated Capacity | 100Ah@10HR-rate (to 1.80Vpc) |
|
Approx Dimensions(mm) (Length×Width×Height) |
L329mm x W174mm x H216x TH222mm |
| Battery designed life | 12 years |
| Approx Weight(kg) | 31kg |
| Applicable Temperature | -40℃～60℃ |
| Optimum Temperature | 20℃～25℃ |
| Self-discharge | Self-discharge rate＜0.1% per day ( 20℃ ) |
| Materials for Battery Containers and Covers | ABS |
| Terminal Type (mm) |
Female Copper lnsert M8 (torgue:8～ 10N.m) |
Constant Current Discharge Ratings-amperes at 25°C
Constant Power Discharge Ratings-watts at 25°C
Advantages
1. Long Life: 12 years design life in floating condition.
2. Up to 5 years design life at renewable energy applications according to IEC61427.
3. Wide operating temperature range from -25°C to 65℃.
4. Nano gel electrolyte eliminate the acid stratification and prolong cycle life.
5. Round trip efficiency as high as 85%.
6. Thick positive flat plate design with high Tin low Calcium alloy and high density paste.
7. Low self-discharge rate and long shelf life (9 months at 20℃).
8. Excellent deep discharge recovery capability.
