Product Details
Place of Origin: Wuhan
Brand Name: FBATTERY
Certification: CE, ROHS, UN38.3
Model Number: ER26500
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Carton
Delivery Time: 20 Days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10000PCS/30Days
Product System: |
LiSOCl2 Battery |
Nominal Capacity: |
9000mAh(1mA-2.0v-25℃) |
Nominal Voltage: |
3.6V |
Operating Temperature: |
﹣60℃～+85℃ |
Weight: |
58g |
Applications: |
Intelligent And Instrument Area, Remote/Wireless, Intelligent Fire Control System |
Product System: |
LiSOCl2 Battery |
Nominal Capacity: |
9000mAh(1mA-2.0v-25℃) |
Nominal Voltage: |
3.6V |
Operating Temperature: |
﹣60℃～+85℃ |
Weight: |
58g |
Applications: |
Intelligent And Instrument Area, Remote/Wireless, Intelligent Fire Control System |

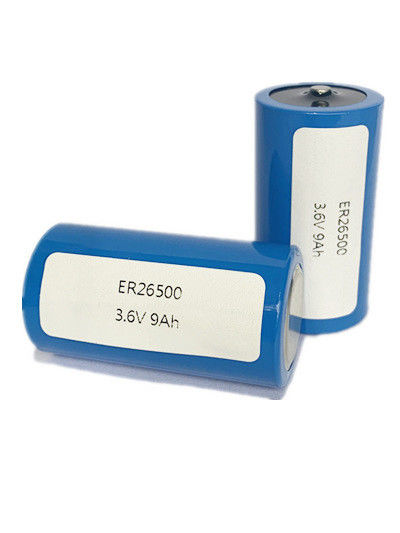

ER26500 Lithium Battery LiSOCl2 Battery Lithium Thionyl Chloride Battery
Product Features
The lithium thionyl chloride battery refers to a battery using lithium metal as a negative electrode material and thionyl chloride as a positive electrode material. The battery has the highest specific capacity among the current lithium primary battery system. The specific energy is generally 420Wh/Kg, and can reach up to 680Wh/Kg at low discharge-rate; The battery has very high voltage, the open-circuit voltage of the battery is 3.65V. when discharging at 1mA/ cm2, the voltage can be maintained at 3.3V, and the voltage remains unchanged within 90% of the capacity range;
Generally, it can be operated in the temperature range of - 40-85°C; the capacity at -40°C is about 50% of capacity innormal temperature; the battery's annual self-discharge rate is less than 1%, and its storage life is more than 10 years.
Performance Data
| Product system | LiSOCl2 Batteries |
| Model | ER26500 |
| Nominal Capacity | 9000mAh |
| Nominal Voltage | 3.6V |
| Max. Continuous Discharge Current | 200mA |
| Max. Pluse Current | 400mA |
| Operating Temperature | ﹣60℃～+85℃ |
| Weight | 58g |
Characteristic Curve
Discharge Curves at(25℃)
Capacity-current Curves
Operating Voltage-temperature Curve
Advantages
1. High Energy Density
2. High Voltage Platform
3. Low Self-discharge Rate
4. Suitable for Small Current and Long Service Life Equipment.
