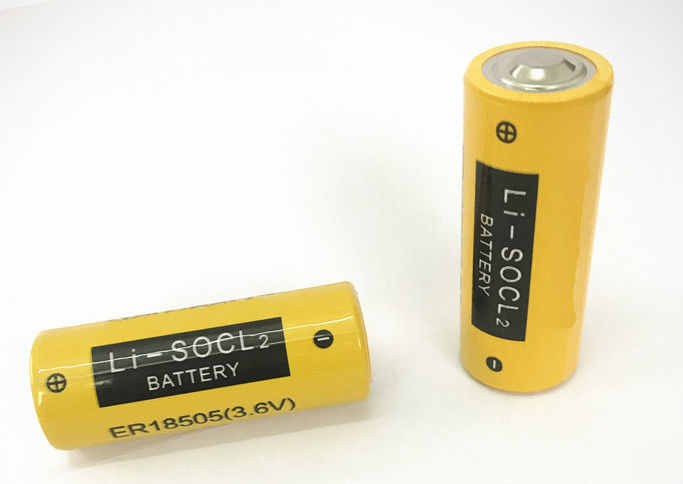

Name: 3.6V 4000mAh ER18505 Lithium Cylinder Battery with Hermetic Glass-to-Metal Sealing
Brand: Wuhan Future Intepower Co., Ltd.
SKU: ER18505
Availability: InStock

Product Details

Place of Origin: Wuhan

Brand Name: FBATTERY

Certification: CE, ROHS, UN38.3

Model Number: ER18505

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: Carton

Delivery Time: 20 Days

Payment Terms: L/C,D/A,D/P,T/T

Supply Ability: 10000PCS/30Days

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                    lithium thionyl chloride cell, lithium cylinder battery


Product System:	LiSOCl2 Battery	Nominal Capacity:	4000mAh(1mA-2.0v-25℃)
Nominal Voltage:	3.6V	Operating Temperature:	﹣60℃～+85℃
Weight:	32g	Applications:	AMR Utility Metering(Electricity, Gas, Water, Heat Meter) Alarms And Security Wireless Devices

Product System:	LiSOCl2 Battery
Nominal Capacity:	4000mAh(1mA-2.0v-25℃)
Nominal Voltage:	3.6V
Operating Temperature:	﹣60℃～+85℃
Weight:	32g
Applications:	AMR Utility Metering(Electricity, Gas, Water, Heat Meter) Alarms And Security Wireless Devices

3.6V 4000mAh ER18505 Lithium Cylinder Battery with Hermetic Glass-to-Metal Sealing

3.6V 4000mAh ER18505 Lithium Cylinder Battery Hermetic Glass To Metal Sealing

Product Overview

ER18505 3.6V 4000mAh Lithium Battery Lithium Thionyl Chloride Battery Lithium Cylinder Battery

3.6V 4.0Ah A Size Bobbin Cell ER18505

Key Features

High and Stable Load Voltage
Superior Drain Capacity
Low Self-discharge Rate (less than 1% after 1 year of storage at 20°C)
Stainless Steel Container
Hermetic Glass-to-Metal Sealing
Laser Welding
Non-flammable Electrolyte

Specifications

Model	ER18505
Type	Energy Type
Size	A
Nominal Capacity	4000mAh (at 1mA, +25°C/2.0V cut off)
Nominal Voltage	3.6V
OCV	3.66V
Cut-off Voltage	2.0V
Dimension	18.5(D)×50.5(H)mm
Weight	32g
Max. Continuous Current	130mA
Max. Pulse Current	200mA
Operating Temperature	-60°C to +85°C
Storage Temperature	Max. 30°C
Shelf Life	≥10 years
Self Discharge Rate	≤1%

Performance Curves

Discharge Curves @ 25℃

Capacity-Current Curves

Operating Voltage-Temperature Curves

Main Applications

Radiocommunication and other military applications
TPMS (Tire Pressure Monitoring Systems)
RFID (Radio Frequency Identification)
Alarms and security systems
Beacons and emergency location transmitters
GPS equipment
Metering systems
LED lighting applications
Other specialized applications

Storage & Handling

Cells should be stored in a clean & dry (less than 30% RH) area. Temperature should not exceed +30°C.

Important Warnings

Do not use if cell casing is mangled
Do not use different models of cells in series
Soldering the tag should be finished in few seconds
Do not attempt to recharge
