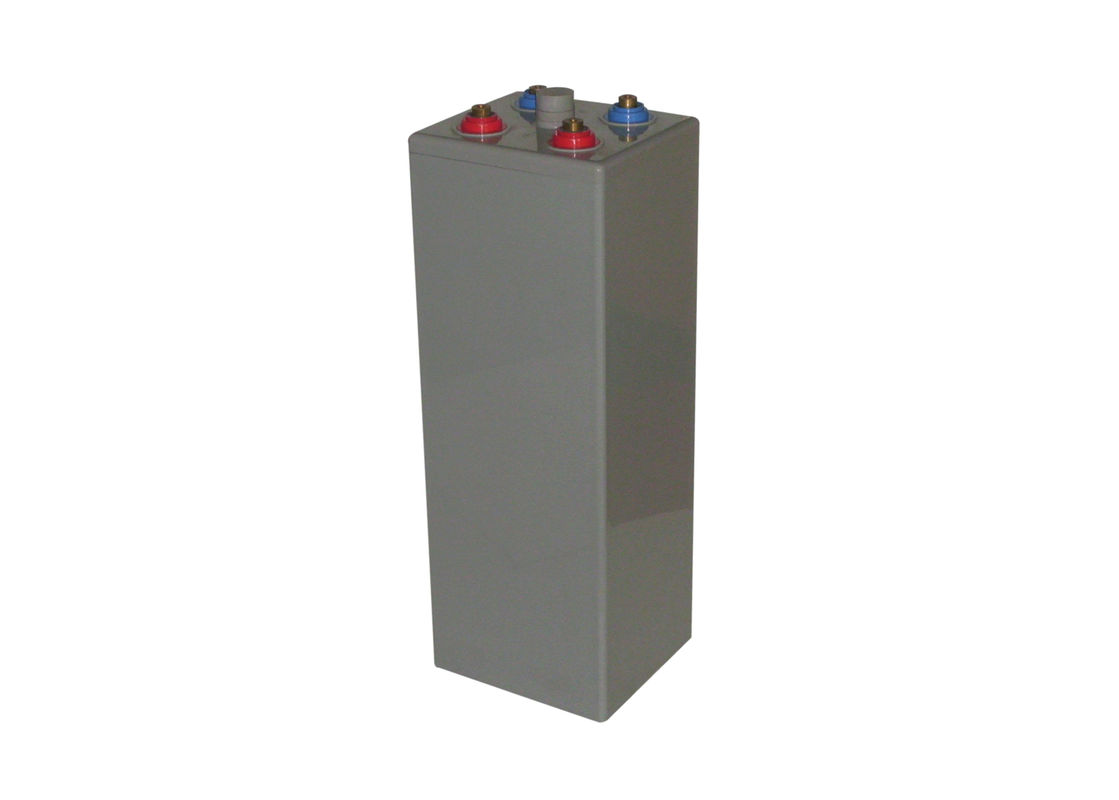

1200Ah OPzV Tubular Gel Battery with 20+ Years Design Life and ABS Case for Harsh Environments

Name: 1200Ah OPzV Tubular Gel Battery with 20+ Years Design Life and ABS Case for Harsh Environments
Brand: Wuhan Future Intepower Co., Ltd.
SKU: OPzV2-1200
Availability: InStock

Product Details

Place of Origin: Wuhan

Certification: CE UL ISO9001 ISO14001

Model Number: OPzV2-1200

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: Carton and Wooden Pallet

Delivery Time: 30 Days

Payment Terms: T/T L/C,D/A,D/P

Supply Ability: 10000PCS/30Days

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                    opzv battery, tubular gel battery


Type:	Tubular Gel Battery	Nominal Voltage:	2V
Rated Capacity:	1200Ah	Battery Case:	ABS
Battery Designed Life:	More Than 20 Years	Approx Weight:	84Kg
Terminal Type:	Female Copper Insert M8 (torque:10~12N.m)	Application:	Telecom Outdoor Applications, Renewable Energy Systems And Other Harsh Environment Applications.

Type:	Tubular Gel Battery
Nominal Voltage:	2V
Rated Capacity:	1200Ah
Battery Case:	ABS
Battery Designed Life:	More Than 20 Years
Approx Weight:	84Kg
Terminal Type:	Female Copper Insert M8 (torque:10~12N.m)
Application:	Telecom Outdoor Applications, Renewable Energy Systems And Other Harsh Environment Applications.

1200Ah OPzV Tubular Gel Battery with 20+ Years Design Life and ABS Case for Harsh Environments

Grey Appearance 2V1200Ah OPzV Pure Gel Battery 2.25 - 2.29V Float Charge Voltage

Product Overview

2V1200Ah Tubular Gel Battery OPzV Battery Deep Cycle Gel Battery Pure Gel Battery

Product Features

The OPzV series adopts Immobilized Gel and Tubular Positive Plate technology, offering high reliability and stable performance. Utilizing die-cast positive grid and patented active material formula, it exceeds DIN standard values and provides 20+ years design life in float service. Ideal for cyclic use under extreme operating conditions. Recommended for telecom outdoor applications, renewable energy systems, and other harsh environment applications.

Construction

Positive plate: Tubular plate with die-cast Pb-Ca alloy grid
Negative plate: Balanced Pb-Ca grid for improved recombination efficiency
Separator: Leaf shape polymer separator
Electrolyte: Dilute high purity sulphuric acid with fumed Silica gel
Battery container and cover: ABS
Pillar seal: 100% factory tested, proven two layers epoxy resin seal
Relief valve: Complete with integrated flame arrestor

Specifications

Nominal Voltage (V)	2
Designed Floating Life (20°C)	20+ Years
Nominal Capacity (20°C)	1200 Ah @ C10 (to 1.80Vpc)
Dimensions	L275mm × W210mm × H681mm
Approx. Weight	84 kg (185 lbs)
Terminal Type	Female Copper Insert M8 (torque: 10~12N.m)
Internal Resistance	Approx. 0.31mOhm (fully charged @ 25°C)
Max. Charge Current	240 A
Max. Discharge Current (5S)	2500 A
Short Circuit Current	6400 A
Self Discharge	Approx. 2% per month @ 20°C
Ambient Temperature	Discharge: -40~65°C Charge: -30~65°C Storage: -25~45°C
Float Charge Voltage	2.25-2.29V (-3mV/°C/cell)
Equalize Charge Voltage	2.35-2.40V (-5mV/°C/cell)
Container Material	ABS (UL94-V0 optional)

Dimensions

Battery Discharge Table - Parameters for Solar & Wind Applications

Characteristics

Applications

Telecom outdoor applications, renewable energy systems, other harsh environment applications.

Advantages

20+ years design life at floating condition
Wide operating temperature range from -40°C to 60°C
Tubular positive plate with prolonged cycle life
Nano Silica gel electrolyte
Lead Calcium die-cast grid with improved corrosion resistance capability
Excellent deep discharge recovery capability
