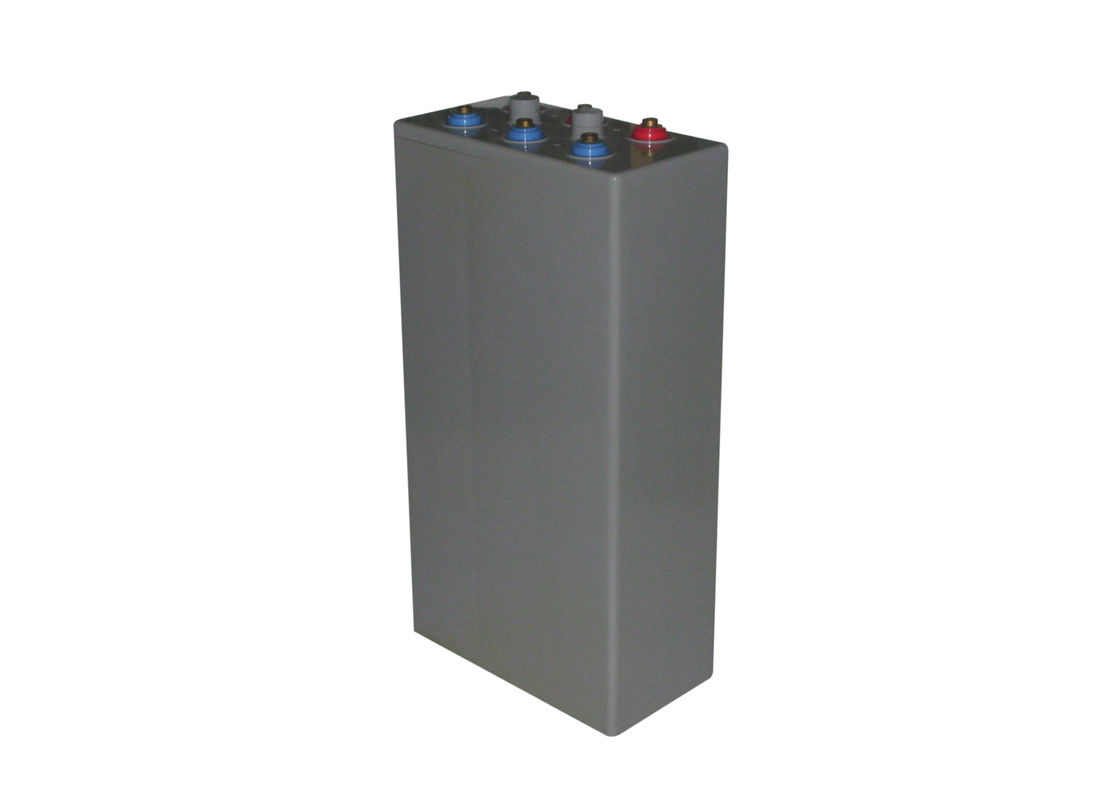

2150Ah Rated Capacity Deep Cycle OPzV Gel Battery with 20+ Years Design Life

Name: 2150Ah Rated Capacity Deep Cycle OPzV Gel Battery with 20+ Years Design Life
Brand: Wuhan Future Intepower Co., Ltd.
SKU: OPzV2-2150
Availability: InStock

Product Details

Place of Origin: Wuhan

Certification: CE UL ISO9001 ISO14001

Model Number: OPzV2-2150

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: Carton and Wooden Pallet

Delivery Time: 30 Days

Payment Terms: T/T L/C,D/A,D/P

Supply Ability: 10000PCS/30Days

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                    opzv battery, tubular gel battery


Type:	Tubular Gel Battery	Nominal Voltage:	2V
Rated Capacity:	2150Ah	Battery Case:	ABS
Battery Designed Life:	More Than 20 Years	Approx Weight:	150Kg
Terminal Type:	Female Copper Insert M8 (torque:10~12N.m)	Application:	Telecom Outdoor Applications, Renewable Energy Systems And Other Harsh Environment Applications.

Type:	Tubular Gel Battery
Nominal Voltage:	2V
Rated Capacity:	2150Ah
Battery Case:	ABS
Battery Designed Life:	More Than 20 Years
Approx Weight:	150Kg
Terminal Type:	Female Copper Insert M8 (torque:10~12N.m)
Application:	Telecom Outdoor Applications, Renewable Energy Systems And Other Harsh Environment Applications.

2150Ah Rated Capacity Deep Cycle OPzV Gel Battery with 20+ Years Design Life

Long Service Life Pure Gel Battery, Deep Cycle Gel Battery 2150Ah Rated Capacity

2V2150Ah Tubular Gel Battery OPzV Battery Deep Cycle Gel Battery Pure Gel Battery

The OPzV series adopts an Immobilized Gel and Tubular Positive Plate technology. It offers high reliability and stable performance. By using die-casted positive grid and patented active material formula, it exceeds the DIN standard values and offers 20+ years design life in float service. It is very suitable for cyclic use under extreme operating conditions.

Construction

Positive plate: Tubular plate with die cast Pb-Ca alloy grid
Negative plate: Balanced Pb-Ca grid for improved recombination efficiency
Separator: Leaf shape polymer separator
Electrolyte: Dilute high purity sulphuric acid with fumed Silica gel
Battery container and cover: ABS
Pillar seal: 100% factory tested, proven two layers epoxy resin seal
Relief valve: Complete with integrated flame arrestor

Specifications

Nominal Voltage (V)	2
Designed Floating Life (20°C)	20+ Years
Nominal Capacity (20°C)	2150 Ah @ C10 (to 1.80Vpc)
Dimensions	L399mm × W212mm × H807mm
Approx. Weight	150 kg (330.0 lbs)
Terminal Type	Female Copper Insert M8 (torque: 10~12N.m)
Internal Resistance	Approx. 0.20mOhm (fully charged @ 25°C)
Max. Charge Current	450 A
Max. Discharge Current (5S)	3600 A
Short Circuit Current	9000 A
Self Discharge	Approx. 2% per month @ 20°C
Ambient Temperature	Discharge: -40~65°C Charge: -30~65°C Storage: -25~45°C
Float Charge Voltage	2.25 - 2.29V (-3mV/℃/cell)
Equalize Charge Voltage	2.35 - 2.40V (-5mV/℃/cell)
Container Material	ABS (UL94-V0 optional)

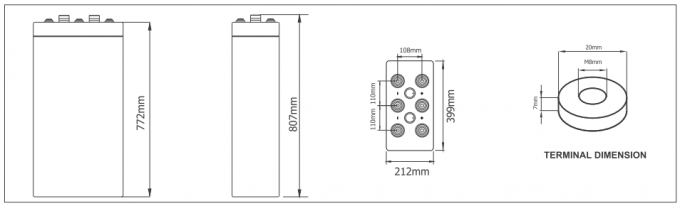

Dimensions

Battery Discharge Table - Parameters for Solar & Wind Applications

Characteristics

Applications

Telecom outdoor applications
Renewable energy systems
Other harsh environment applications

Advantages

20+ years design life at floating condition
Wide operating temperature range from -40°C to 60°C
Tubular positive plate with prolonged cycle life
Nano Silica gel electrolyte
Lead Calcium die cast grid with improved corrosion resistance capability
Excellent deep discharge recovery capability
