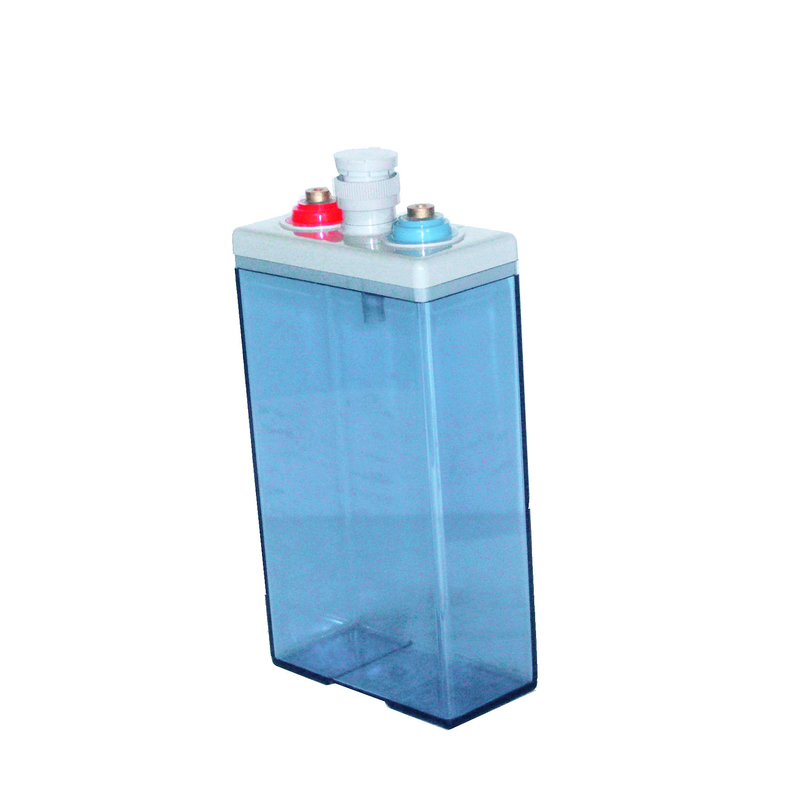

2V150Ah OPzS Battery Rechargeable Backup System 0.85mOhm Internal Resistance

Name: 2V150Ah OPzS Battery Rechargeable Backup System 0.85mOhm Internal Resistance
Brand: Wuhan Future Intepower Co., Ltd.
SKU: OPzS2-150
Availability: InStock

Product Details

Place of Origin: Wuhan

Certification: CE UL ISO9001 ISO14001

Model Number: OPzS2-150

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: Carton and Wooden Pallet

Delivery Time: 30 Days

Payment Terms: T/T L/C, D/A, D/P

Supply Ability: 10000PCS/30Days

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                high capacity solar battery, flooded deep cycle gel battery


Type:	Tubular Flooded Battery	Nominal Voltage:	2V
Rated Capacity:	150Ah	Approx Weight:	10.5Kg(with Electrolyte)
Battery Designed Life:	More Than 20 Years	Battery Case:	ASAN
Internal Resistance:	0.85mOhm	Terminal Type:	Female Copper Insert M8 (torque:10~12N.m)
Application:	Backup System, Solar System

Type:	Tubular Flooded Battery
Nominal Voltage:	2V
Rated Capacity:	150Ah
Approx Weight:	10.5Kg(with Electrolyte)
Battery Designed Life:	More Than 20 Years
Battery Case:	ASAN
Internal Resistance:	0.85mOhm
Terminal Type:	Female Copper Insert M8 (torque:10~12N.m)
Application:	Backup System, Solar System

2V150Ah OPzS Battery Rechargeable Backup System 0.85mOhm Internal Resistance

2V150Ah OPzS Rechargeable backup system OPzS Battery Flooded Deep Cycle Gel Battery

Product Features

The OPzS series is a traditional tubular plate flooded battery which offers 20+ years design life according to the standard IEC60896-11.with a new design and technical improvement, it offers maximum efficiency reliability for the widest variety of applications.

Construction

Positive plate :Tubular plate with die cast alloy grid

Negative plate : Balanced Pb-Ca grid for improved recombination efficiency

Separator : Leaf shape rubber separator

Electrolyte : Dilute high purity sulphuric acid of 1.240 specific gravity

Battery Container : SAN

Battery Cover : ABS

Pillar Seal: Double layers epoxy resin seal

Relief Valve : Complete with integrated flame arrestor

Specifications

Nominal Voltage (V)	2
Designed Floating Life (20^oC)	20+ Years
Nominal Capacity (20^oC)	150 Ah @ C10 (to 1.80Vpc)
Demensions	L103mm×W206mm×H409mm
Approx. Weight	Without electrolyte: 10Kg With electrolyte: 14.5Kg
Terminal Type	Female Copper Insert M8 (torque:10~12N.m)
Internal Resistance	Approx. 0.44mOhm (fully charged @ 25°C)
Max. Charge Current	30 A
Max. Discharge Current (5S)	1000 A
Short Circuit Current	2400 A
Self Discharge	Approx. 4% per month @ 20°C
Ambient Temperature	Discharge: -25~65°C Charge: -20~65°C Storage: -15~40°C
Float Charge Voltage	2.21-2.25V @25oC (-3mV / oC/ cell)
Equalize Charge Voltage	2.35-2.4V @25oC
Container Material	SAN

Constant Current Discharge Characteristics: Amps (20°C)

2V150Ah OPzS Battery Rechargeable Backup System 0.85mOhm Internal Resistance 0

Constant Power Discharge Characteristics: W/cell (20°C)

2V150Ah OPzS Battery Rechargeable Backup System 0.85mOhm Internal Resistance 1

Charge Characteristic

2V150Ah OPzS Battery Rechargeable Backup System 0.85mOhm Internal Resistance 2

Discharge Characteristic

2V150Ah OPzS Battery Rechargeable Backup System 0.85mOhm Internal Resistance 3

Cycle Life vs Depth of Discharge

2V150Ah OPzS Battery Rechargeable Backup System 0.85mOhm Internal Resistance 4

Capacity vs Temperature

2V150Ah OPzS Battery Rechargeable Backup System 0.85mOhm Internal Resistance 5

Cycle Discharge Voltage Curve

2V150Ah OPzS Battery Rechargeable Backup System 0.85mOhm Internal Resistance 6

Application

Standby Power Applications that Required Highest Levels of Reliability and Security

· Telecom

· Electric Utilities

· Control Equipments

· Security Systems

· Medical Equipments

· UPS systems

· Railroad Utilities

· Photovoltaic Systems

· Renewable Energy Systems

Advantages

1. 20+ years design life at floating condition.

2. Wide operating temperature range from -40°C to 60°C.

3. Tubular positive plate with prolonged cycle life.

4. Nano Silica gel electrolyte.

5. Lead Calcium die cast grid with improved corrosion resistance capability.

6. Excellent deep discharge recovery capability.

7. Low self-discharge rate and long shelf life (1 year at 20°C)
