2V1500Ah OPzS Tubular Plate Battery with 20+ Years Design Life and Female Copper Insert M8 Terminal

Name: 2V1500Ah OPzS Tubular Plate Battery with 20+ Years Design Life and Female Copper Insert M8 Terminal
Brand: Wuhan Future Intepower Co., Ltd.
SKU: OPzS2-1500
Availability: InStock

Product Details

Place of Origin: Wuhan

Certification: CE UL ISO9001 ISO14001

Model Number: OPzS2-1500

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: Carton and Wooden Pallet

Delivery Time: 30 Days

Payment Terms: T/T L/C,D/A,D/P

Supply Ability: 10000PCS/30Days

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                            opzs tubular battery, flooded deep cycle gel battery


Type:	Tubular Flooded Battery	Nominal Voltage:	2V
Rated Capacity:	1500Ah	Battery Case:	ABS
Battery Designed Life:	More Than 20 Years	Approx Weight:	98Kg（With Electrolyte）
Terminal Type:	Female Copper Insert M8 (torque:10~12N.m)	Application:	Solar System UPS Systems Telecommunications
Internal Resistance:	0.37mOhm(fully Charged @ 20°C

Type:	Tubular Flooded Battery
Nominal Voltage:	2V
Rated Capacity:	1500Ah
Battery Case:	ABS
Battery Designed Life:	More Than 20 Years
Approx Weight:	98Kg（With Electrolyte）
Terminal Type:	Female Copper Insert M8 (torque:10~12N.m)
Application:	Solar System UPS Systems Telecommunications
Internal Resistance:	0.37mOhm(fully Charged @ 20°C

2V1500Ah OPzS Tubular Plate Battery with 20+ Years Design Life and Female Copper Insert M8 Terminal

Compact Tubular Plate Battery, 2V1500Ah Gel Deep Cycle Battery Highly Reliable

2V1500Ah Flooded Deep Cycle Gel Battery OPzS Battery Tubular Plate Flooded Battery

Product Features

The OPzS series is a traditional tubular plate flooded battery which offers 20+ years design life according to the standard IEC60896-11. With a new design and technical improvement, it offers maximum efficiency reliability for the widest variety of applications.

Construction

Positive plate: Tubular plate with die cast alloy grid
Negative plate: Balanced Pb-Ca grid for improved recombination efficiency
Separator: Leaf shape rubber separator
Electrolyte: Dilute high purity sulphuric acid of 1.240 specific gravity
Battery Container: SAN
Battery Cover: ABS
Pillar Seal: Double layers epoxy resin seal
Relief Valve: Complete with integrated flame arrestor

Specifications

Parameter	Value
Nominal Voltage (V)	2
Designed Floating Life (20°C)	20+ Years
Nominal Capacity (20°C)	1500 Ah @ C10 (to 1.80Vpc)
Dimensions	L275mm × W210mm × H850mm
Approx. Weight	Without electrolyte: 71Kg With electrolyte: 98Kg
Terminal Type	Female Copper Insert M8 (torque: 10~12N.m)
Internal Resistance	Approx. 0.37mOhm (fully charged @ 25°C)
Max. Charge Current	300 A
Max. Discharge Current (5S)	2500 A
Short Circuit Current	5400 A
Self Discharge	Approx. 4% per month @ 20°C
Ambient Temperature	Discharge: -40~65°C Charge: -30~65°C Storage: -25~45°C
Float Charge Voltage	2.21-2.25V @25°C (-3mV/°C/cell)
Equalize Charge Voltage	2.35-2.4V @25°C
Container Material	SAN

Performance Characteristics

Constant Current Discharge Characteristics at 20°C

Constant Current Discharge Characteristics: Amps (20°C)

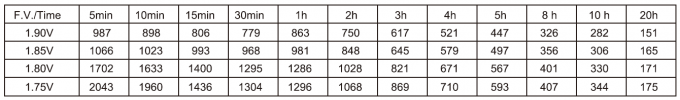

Constant Power Discharge Characteristics at 20°C

Constant Power Discharge Characteristics: W/cell (20°C)

Charge Characteristic

Discharge Characteristic

Cycle Life vs Depth of Discharge

Capacity vs Temperature

Cycle Discharge Voltage Curve

Application

Standby Power Applications that Required Highest Levels of Reliability and Security. Alarm Systems, Cable Television, Communications Equipment.

Advantages

20+ years design life at floating condition
Wide operating temperature range from -40°C to 60°C
Tubular positive plate with prolonged cycle life
Nano Silica gel electrolyte
Lead Calcium die cast grid with improved corrosion resistance capability
Excellent deep discharge recovery capability
Low self-discharge rate and long shelf life (1 year at 20°C)
