Product Details
Place of Origin: Wuhan
Certification: CE UL ISO9001 ISO14001
Model Number: OPzS2-3000
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Carton and Wooden Pallet
Delivery Time: 30 Days
Payment Terms: T/T L/C, D/A, D/P
Supply Ability: 10000PCS/30Days
Type: |
Tubular Plate Battery |
Nominal Voltage: |
2V |
Rated Capacity: |
3000Ah |
Container Material: |
SAN |
Battery Designed Life: |
More Than 20 Years |
Approx Weight(Without Electrolyte): |
155Kg |
Approx Weight(With Electrolyte): |
218Kg |
Electrolyte: |
Diluted Sulphuric Acid Of 1.240g/cm3(20°C) Acid Weight: 63kg |
Terminal Type: |
Female Copper Insert M8 (torque:10~12N.m) |
Application: |
Standby Power Applications That Required Highest Levels Of Reliability And Security |
Type: |
Tubular Plate Battery |
Nominal Voltage: |
2V |
Rated Capacity: |
3000Ah |
Container Material: |
SAN |
Battery Designed Life: |
More Than 20 Years |
Approx Weight(Without Electrolyte): |
155Kg |
Approx Weight(With Electrolyte): |
218Kg |
Electrolyte: |
Diluted Sulphuric Acid Of 1.240g/cm3(20°C) Acid Weight: 63kg |
Terminal Type: |
Female Copper Insert M8 (torque:10~12N.m) |
Application: |
Standby Power Applications That Required Highest Levels Of Reliability And Security |

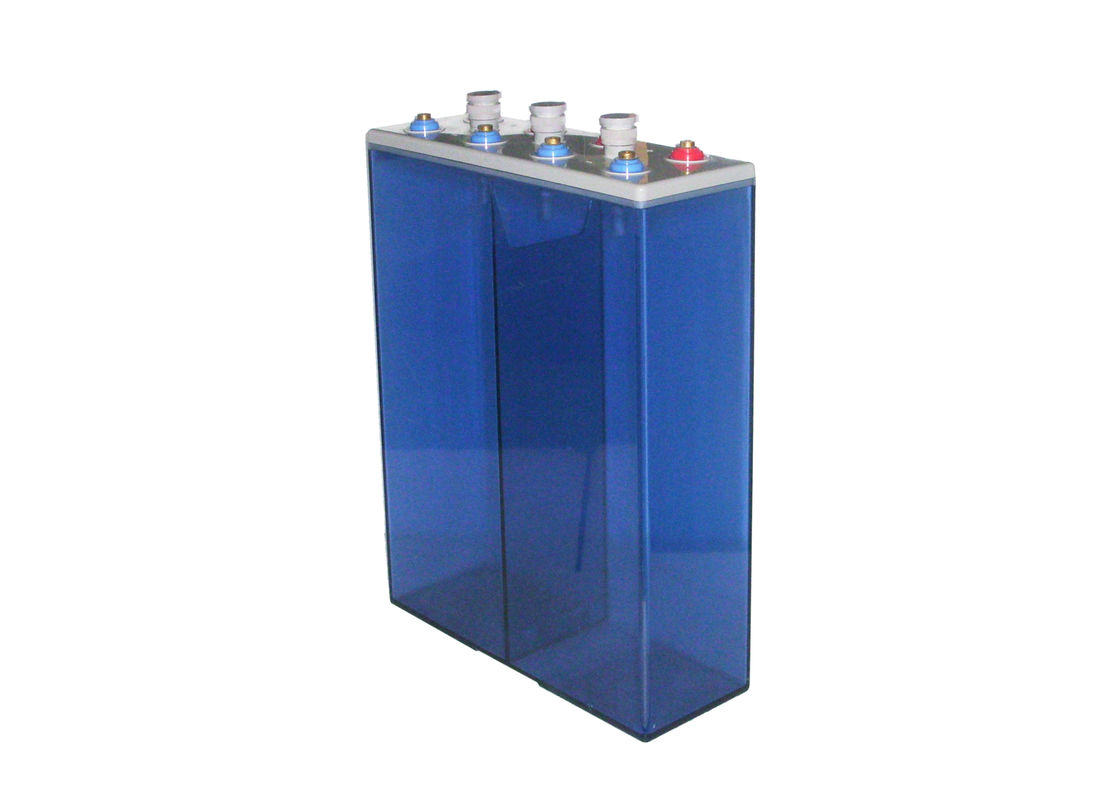

OPZS Stationary Flooded Battery OPzS Battery 2V3000AH Tubular Plate Battery for Solar System
Product Features
The OPzS series is a traditional tubular plate flooded battery which offers 20+ years design life according to the standard IEC60896-11.with a new design and technical improvement, it offers maximum efficiency reliability for the widest variety of applications.
Positive plate :Tubular plate with die cast alloy grid
Negative plate : Balanced Pb-Ca grid for improved recombination efficiency
Separator : Leaf shape rubber separator
Electrolyte : Dilute high purity sulphuric acid of 1.240 specific gravity
Battery Container : SAN
Battery Cover : ABS
Pillar Seal: Double layers epoxy resin seal
Relief Valve : Complete with integrated flame arrestor
Specifications
| Nominal Voltage (V) | 2 |
| Designed Floating Life (20oC) | 20+ Years |
| Nominal Capacity (20oC) | 3000 Ah @ C10 (to 1.80Vpc) |
| Demensions |
L576mm×W212mm×H826mm |
| Approx. Weight |
Without electrolyte: 155Kg With electrolyte: 218Kg |
| Terminal Type | Female Copper Insert M8 (torque:10~12N.m) |
| Internal Resistance | Approx. 0.28mOhm (fully charged @ 25°C) |
| Max. Charge Current | 600 A |
| Max. Discharge Current (5S) | 4000 A |
| Short Circuit Current | 7200 A |
| Self Discharge | Approx. 4% per month @ 20°C cm3 |
|
Ambient Temperature |
Discharge: -25~65°C Charge: -20~65°C Storage: -15~40°C |
| Float Charge Voltage | 2.21-2.25V @25°C (-3mV / °C/ cell) |
| Equalize Charge Voltage | 2.35-2.4V @25°C |
| Container Material | SAN |
Constant Current Discharge Characteristics: Amps (20°C)
Constant Power Discharge Characteristics: W/cell (20°C)
Charge Characteristic
Discharge Characteristic
Cycle Life vs Depth of Discharge
Capacity vs Temperature
Cycle Discharge Voltage Curve
Application
Standby Power Applications that Required Highest Levels of Reliability and Security
Telecom, Electric Utilities, Control Equipments, Security Systems, Medical Equipments, UPS systems, Railroad Utilities, Photovoltaic Systems, Renewable Energy System and so on.
Advantages
1. 20+ years design life at floating condition.
2. Wide operating temperature range from -40°C to 60°C.
3. Tubular positive plate with prolonged cycle life.
4. Nano Silica gel electrolyte.
5. Lead Calcium die cast grid with improved corrosion resistance capability.
6. Excellent deep discharge recovery capability.
7. Low self-discharge rate and long shelf life (1 year at 20°C)
