Product Details
Place of Origin: Wuhan
Certification: CE UL ISO9001 ISO14001
Model Number: OPzV2-350
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Carton and Wooden Pallet
Delivery Time: 30 Days
Payment Terms: T/T L/C, D/A, D/P
Supply Ability: 10000PCS/30Days
Type: |
OPzV Gel Battery |
Nominal Voltage: |
2 Volt |
Rated Capacity: |
500 Ah |
Battery Case: |
ABS Material |
Battery Designed Life: |
More Than 20 Years |
Approx Weight: |
37.3Kg |
Terminal Type: |
Female Copper Insert M8 (torque:10~12N.m) |
Application: |
Telecom Applications, Renewable Energy Systems And Other Harsh Environment Applications. |
Type: |
OPzV Gel Battery |
Nominal Voltage: |
2 Volt |
Rated Capacity: |
500 Ah |
Battery Case: |
ABS Material |
Battery Designed Life: |
More Than 20 Years |
Approx Weight: |
37.3Kg |
Terminal Type: |
Female Copper Insert M8 (torque:10~12N.m) |
Application: |
Telecom Applications, Renewable Energy Systems And Other Harsh Environment Applications. |

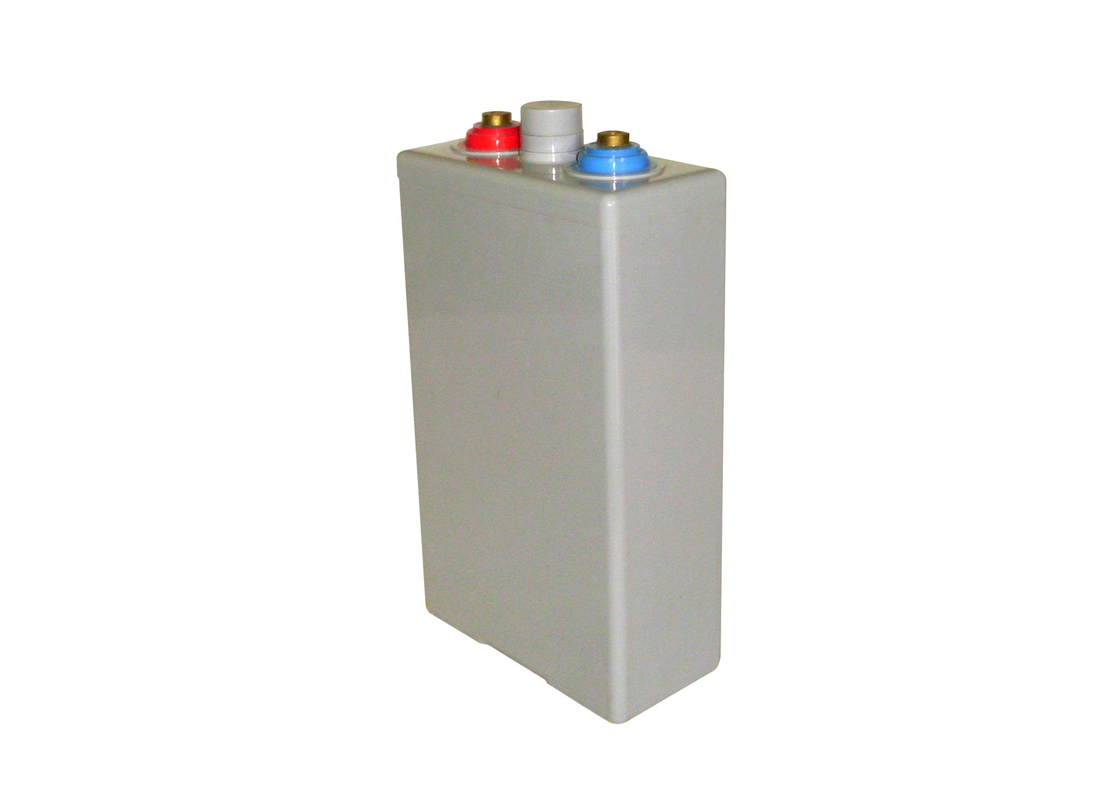

2 Volt 500Ah OPzV Gel Battery Tubular Gel Battery For Telecom
OPzV Gel Battery Features
1) Gelled electrolyte made in tubular shape and the gas compound inside the battery
completely prevent the leakage or overflow of electrolyte
2) Maintenance free operation provides the easy use
3) Explosion proof valve and stone ensures the working safety
4) Gelled electrolyte made in tubular shape brings super long reliable service life.
Positive plate :Tubular plate with die cast Pb-Ca alloy grid
Negative plate : Balanced Pb-Ca grid for improved recombination efficiency
Separator : leaf shape polymer separator
Electrolyte : Dilute high purity sulphuric acid with fumed Silica gel
Battery container and cover : ABS
Pillar seal: 100% factory tested, proven two layers epoxy resin seal
Relief valve : Complete with integrated flame arrestor
Specifications of OPzV Gel Battery
| Nominal Voltage (V) | 2 |
| Designed Floating Life (20oC) | 20+ Years |
| Nominal Capacity (20oC) | 500 Ah @ C10 (to 1.80Vpc) |
| Demensions | L166mm×W206mm×H506mm |
| Approx. Weight | 36.3 kg (80.0 lbs) |
| Terminal Type | Female Copper Insert M8 (torque:10~12N.m) |
| Internal Resistance | Approx. 0.56mOhm (fully charged @ 25°C) |
| Max. Charge Current | 100 A |
| Max. Discharge Current (5S) | 2000 A |
| Short Circuit Current | 2600 A |
| Self Discharge | Approx. 2% per month @ 20°C |
|
Ambient Temperature |
Discharge: -40~65°C Charge: -30~65°C Storage: -25~45°C |
| Float Charge Voltage | 2.23V @25oC (-3mV / oC/ cell) |
| Equalize Charge Voltage | 2.35V @25oC |
| Container Material | ABS(UL94-V0 optional) |
Application
Telecom outdoor applications, renewable energy systems, other harsh environment applications.
Advantages
1. 20+ years design life at floating condition.
2. Wide operating temperature range from -40C to 60C.
3. Tubular positive plate with prolonged cycle life.
4. Nano Silica gel electrolyte.
5. Lead Calcium die cast grid with improved corrosion resistance capability.
6. Excellent deep discharge recovery capability.
