Product Details
Place of Origin: Wuhan
Certification: CE UL ISO9001 ISO14001
Model Number: OPzV2-2000
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Carton and Wooden Pallet
Delivery Time: 30 Days
Payment Terms: T/T L/C, D/A, D/P
Supply Ability: 10000PCS/30Days
Type: |
OPzV Gel Battery |
Nominal Voltage: |
2Volt |
Rated Capacity: |
2000 Ah |
Battery Case: |
ABS Material |
Battery Designed Life: |
More Than 20 Years |
Approx Weight: |
144.6Kg |
Terminal Type: |
Female Copper Insert M8 (torque:10~12N.m) |
Application: |
Telecom Outdoor Applications, Renewable Energy Systems And Other Harsh Environment Applications. |
Type: |
OPzV Gel Battery |
Nominal Voltage: |
2Volt |
Rated Capacity: |
2000 Ah |
Battery Case: |
ABS Material |
Battery Designed Life: |
More Than 20 Years |
Approx Weight: |
144.6Kg |
Terminal Type: |
Female Copper Insert M8 (torque:10~12N.m) |
Application: |
Telecom Outdoor Applications, Renewable Energy Systems And Other Harsh Environment Applications. |

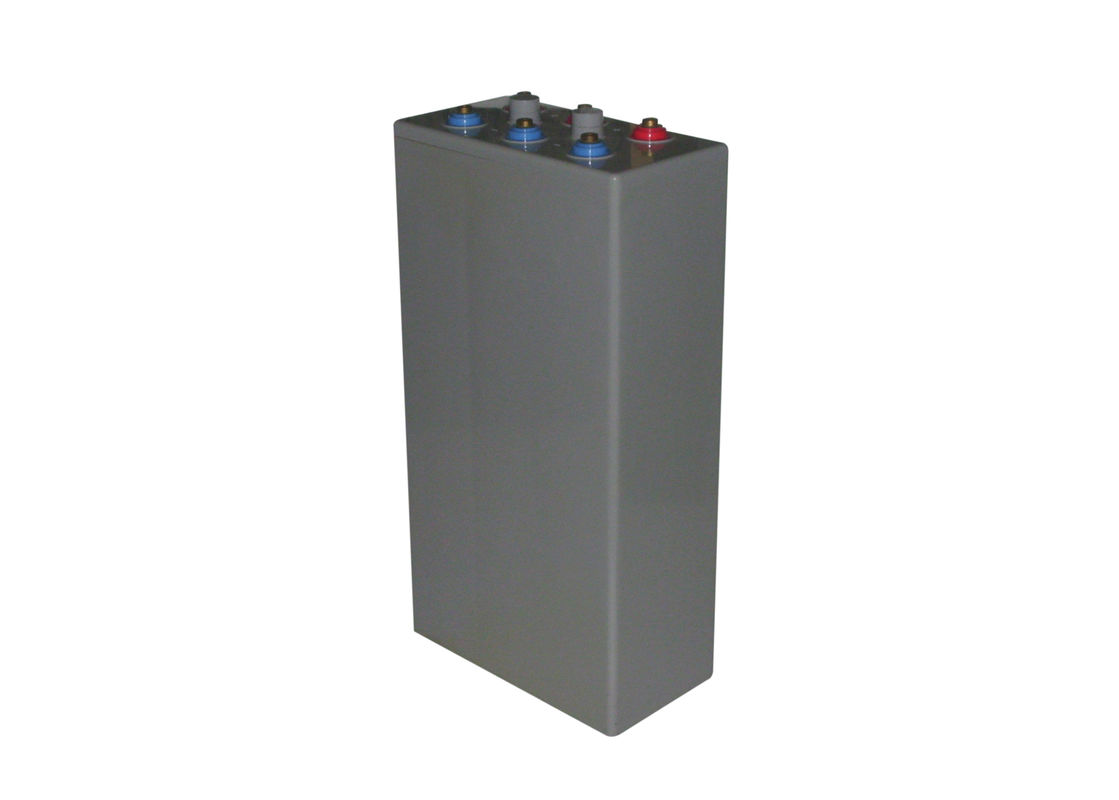

Tubular 2V 2000Ah OPzV Gel Battery For Telecom Outdoor / Wind Energy
OPzV Gel Battery Features
High cycle life & Maintenance free
Excellent deep cycle performance
Positive plate :Tubular plate with die cast Pb-Ca alloy grid
Negative plate : Balanced Pb-Ca grid for improved recombination efficiency
Separator : leaf shape polymer separator
Electrolyte : Dilute high purity sulphuric acid with fumed Silica gel
Battery container and cover : ABS
Specifications of OPzV Gel Battery
| Nominal Voltage (V) | 2 |
| Designed Floating Life (20oC) | 20+ Years |
| Nominal Capacity (20oC) | 2000 Ah @ C10 (to 1.80Vpc) |
| Demensions | L399mm×W212mm×H807mm |
| Approx. Weight | 144.6 kg (319 lbs) |
| Terminal Type | Female Copper Insert M8 (torque:10~12N.m) |
| Internal Resistance | Approx. 0.24mOhm (fully charged @ 25°C) |
| Max. Charge Current | 400 A |
| Max. Discharge Current (5S) | 3000 A |
| Short Circuit Current | 8300 A |
| Self Discharge | Approx. 2% per month @ 20°C |
|
Ambient Temperature |
Discharge: -40~65°C Charge: -30~65°C Storage: -25~45°C |
| Float Charge Voltage | 2.25 - 2.29V(-3mV / ℃/ cell) |
| Equalize Charge Voltage | 2.35 - 2.40V(-3mV / ℃/ cell) |
| Container Material | ABS(UL94-V0 optional) |
DIMENSIONS
BATTERY DISCHARGE TABLE PARAMETERS FOR SOLAR & WIND APPLICATIONS
CHARACTERISTICS
Application
Telecom outdoor applications, renewable energy systems, other harsh environment applications.
Advantages
1. 20+ years design life at floating condition.
2. Wide operating temperature range from -40C to 60C.
3. Tubular positive plate with prolonged cycle life.
4. Nano Silica gel electrolyte.
5. Lead Calcium die cast grid with improved corrosion resistance capability.
6. Excellent deep discharge recovery capability.
