Tubular 2V 2000Ah OPzV Gel Battery with 20+ Years Design Life and ABS Case for Telecom Outdoor and Wind Energy

Name: Tubular 2V 2000Ah OPzV Gel Battery with 20+ Years Design Life and ABS Case for Telecom Outdoor and Wind Energy
Brand: Wuhan Future Intepower Co., Ltd.
SKU: OPzV2-2000
Availability: InStock

Product Details

Place of Origin: Wuhan

Certification: CE UL ISO9001 ISO14001

Model Number: OPzV2-2000

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: Carton and Wooden Pallet

Delivery Time: 30 Days

Payment Terms: T/T L/C,D/A,D/P

Supply Ability: 10000PCS/30Days

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                    2V 2000Ah OPzV Gel Battery, Tubular OPzV Gel Battery, 2000Ah 2v tubular gel battery


Type:	OPzV Gel Battery	Nominal Voltage:	2Volt
Rated Capacity:	2000 Ah	Battery Case:	ABS Material
Battery Designed Life:	More Than 20 Years	Approx Weight:	144.6Kg
Terminal Type:	Female Copper Insert M8 (torque:10~12N.m)	Application:	Telecom Outdoor Applications, Renewable Energy Systems And Other Harsh Environment Applications.

Type:	OPzV Gel Battery
Nominal Voltage:	2Volt
Rated Capacity:	2000 Ah
Battery Case:	ABS Material
Battery Designed Life:	More Than 20 Years
Approx Weight:	144.6Kg
Terminal Type:	Female Copper Insert M8 (torque:10~12N.m)
Application:	Telecom Outdoor Applications, Renewable Energy Systems And Other Harsh Environment Applications.

Tubular 2V 2000Ah OPzV Gel Battery with 20+ Years Design Life and ABS Case for Telecom Outdoor and Wind Energy

Tubular 2V 2000Ah OPzV Gel Battery For Telecom Outdoor / Wind Energy

Tubular 2V 2000Ah OPzV Gel Battery designed for demanding applications in telecom outdoor installations and wind energy systems.

OPzV Gel Battery Features

Advanced production equipment and experienced technical personnel
Completely sealed design with gas recombination
High cycle life and maintenance-free operation
Excellent deep cycle performance
Superior charge acceptance capability
Adapts to wider temperature ranges

OPzV Gel Battery Construction

Positive Plate: Tubular plate with die cast Pb-Ca alloy grid
Negative Plate: Balanced Pb-Ca grid for improved recombination efficiency
Separator: Leaf shape polymer separator
Electrolyte: Dilute high purity sulphuric acid with fumed Silica gel
Battery Container and Cover: ABS material

OPzV Gel Battery Specifications

Nominal Voltage (V)	2
Designed Floating Life (20°C)	20+ Years
Nominal Capacity (20°C)	2000 Ah @ C10 (to 1.80Vpc)
Dimensions	L399mm × W212mm × H807mm
Approximate Weight	144.6 kg (319 lbs)
Terminal Type	Female Copper Insert M8 (torque: 10~12N.m)
Internal Resistance	Approx. 0.24mOhm (fully charged @ 25°C)
Max Charge Current	400 A
Max Discharge Current (5S)	3000 A
Short Circuit Current	8300 A
Self Discharge	Approx. 2% per month @ 20°C
Ambient Temperature	Discharge: -40~65°C Charge: -30~65°C Storage: -25~45°C
Float Charge Voltage	2.25 - 2.29V (-3mV/℃/cell)
Equalize Charge Voltage	2.35 - 2.40V (-3mV/℃/cell)
Container Material	ABS (UL94-V0 optional)

Dimensions

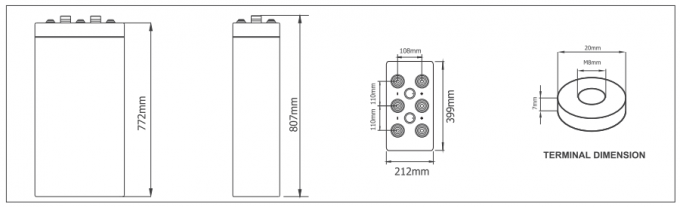

OPzV Gel Battery dimensional diagram showing L399mm × W212mm × H807mm measurements

Battery Discharge Table - Parameters for Solar & Wind Applications

Characteristics

Applications

Telecom outdoor applications, renewable energy systems, and other harsh environment applications.

Advantages

20+ years design life at floating condition
Wide operating temperature range from -40°C to 60°C
Tubular positive plate with prolonged cycle life
Nano Silica gel electrolyte
Lead Calcium die cast grid with improved corrosion resistance capability
Excellent deep discharge recovery capability
