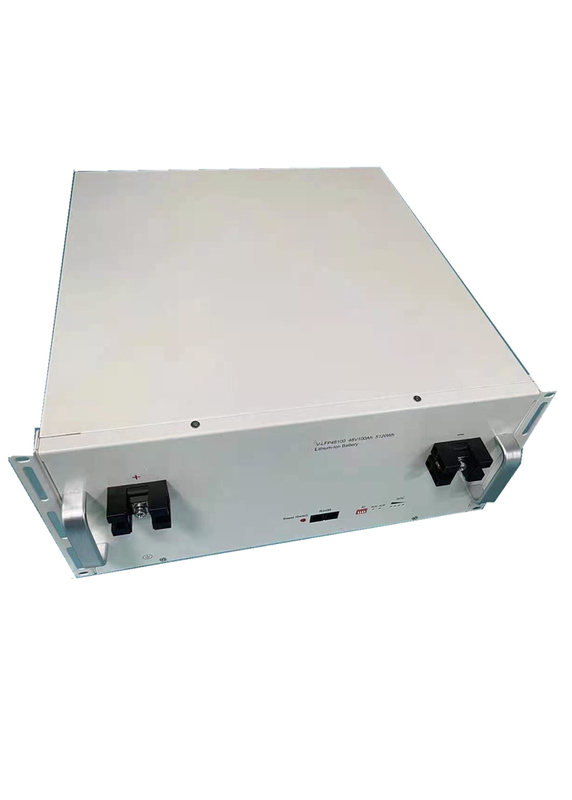

Product Details
Place of Origin: Wuhan
Brand Name: FBATTERY
Certification: CE, ROHS, UN38.3
Model Number: 51.2V126AH
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Carton
Delivery Time: 10 Days
Payment Terms: L/C, D/A, D/P, T/T in advance
Supply Ability: 10000PCS/30Days
Product System: |
LiFEPO4 Solar Battery Pack |
Nominal Capacity(3.67V): |
126Ah |
Nominal Voltage: |
51.2V |
Cell: |
3.2V6AH |
Cell Qty.: |
336pcs |
Applications: |
Smart 6KWh Photovoltaic Energy Storage System, Household Or Outdoor Electricity |
System Capacity: |
6KWH |
Product System: |
LiFEPO4 Solar Battery Pack |
Nominal Capacity(3.67V): |
126Ah |
Nominal Voltage: |
51.2V |
Cell: |
3.2V6AH |
Cell Qty.: |
336pcs |
Applications: |
Smart 6KWh Photovoltaic Energy Storage System, Household Or Outdoor Electricity |
System Capacity: |
6KWH |
Design Topology Diagram
Battery mode: Prioritize the battery power supply. When the battery reaches a low voltage, it will automatically switch to Mains electricity. After charge enough,the device will automatically switch to storage for battery.
|
System Capacity |
6kWh |
|
The System Efficiency |
85%±5% |
|
The System DOD |
80%DOD |
|
Min Energy Capacity |
≥6.451kWh |
|
Life Cycles |
25℃±2℃,0.3Ccharge and discharge,80%DOD,More than 2000times,(Capacity remain over 80%) |
|
Continuous Charge Current(A) |
50A |
|
Continuous Discharge Current(A) |
80A |
|
Charge and Discharge Rate at Full Power |
0.3C |
|
Battery Energy |
25°C 6.5kWh (100% DOD @ 1C rate) - 20°C 6.0 kWh(100% DOD @ 1C rate) |
|
Storage Temperature |
Less 45°C suggested |
|
Self Discharge |
25°C,Per month≤5% |
|
IP |
IP67 |
|
Type |
Inverter configuration (/)2-3kW Continuous power:(KW)2-3 Peak power:(KW)6 |
|
Parameters |
Nominal Voltage:(Vdc)51.2 Charge Current:(A)0~30 Cutoff Voltage: (V)58.4 Max discharge current:(A)60 Grid Voltage range:90-250Vac Max input current:35A Frequency:45-65Hz The voltage from Mains electricity low voltage to battery mode:165Vac±5％ The recovery voltage of Mains electricity mode low voltage: 75Vac±5％ The voltage from Mains electricity high voltage to battery mode:265Vac±5％ The recovery voltage of Mains electricity mode high voltage:55Vac±5％ Inverter voltage range:220Vac±5%(Inverter mode) Frequency:50/60Hz±1%(Inverter mode) Output waveform: pure sine wave Efficiency: >90% (88% resistive load) Protection function: overvoltage and undervoltage protection,overload protection, short circuit protection, over temperatureprotection. |
| BMS | |
|
Discharge Current(A) |
100 |
|
Charge Voltage(V) |
58.4 |
|
Charge Current(A) |
50 |
|
Overcharge Protection Voltage(V) |
3.75±0.05 |
|
Over Discharge Protection Voltage(V) |
2.2±0.01 |
|
Charging Overcurrent Protection(A) |
150±20 |
|
Discharge Overcurrent Protection(A) |
300±50 |
|
Net WT. |
220KG |
