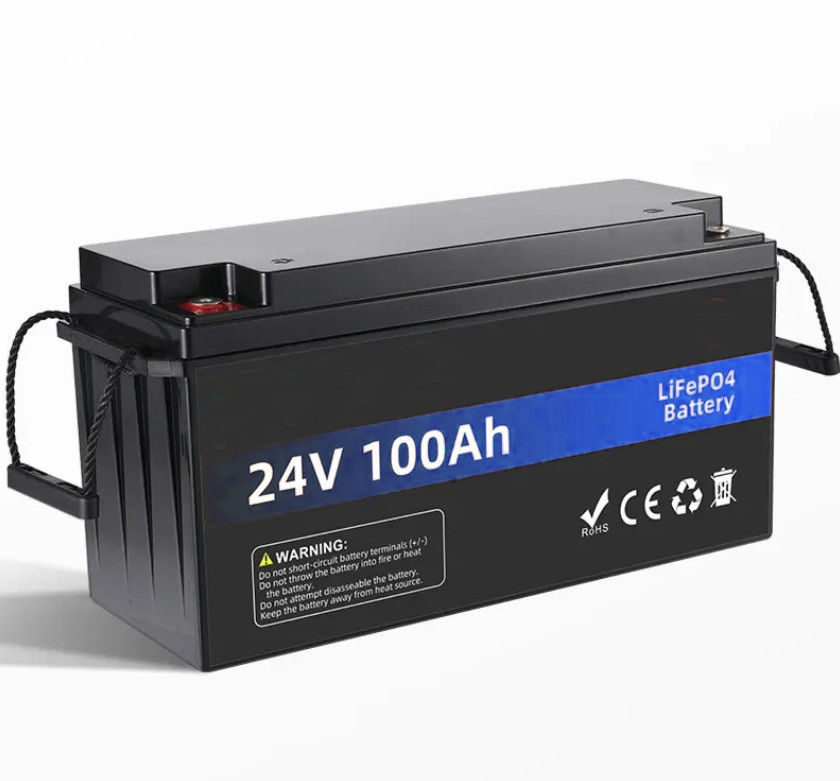

24V 100Ah Deep Cycle LiFePO4 Lithium Ion Battery Pack for Solar System

Name: 24V 100Ah Deep Cycle LiFePO4 Lithium Ion Battery Pack for Solar System
Brand: Wuhan Future Intepower Co., Ltd.
SKU: 24V100Ah
Availability: InStock

Product Details

Place of Origin: Wuhan,China

Brand Name: FBATTERY

Certification: CE,ROHS,UN38.3

Model Number: 24V100Ah

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: blister card packing,Carton

Delivery Time: 20 work days

Payment Terms: L/C,D/A,D/P,T/T in advance

Supply Ability: 10000PCS/30Days

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                    100Ah Lithium Ion Battery Pack, 24V Lithium Ion Battery Pack


Voltage:	24V	Capacity:	100Ah
Length:	≤520mm	Width:	≤238mm
Height:	≤220mm	Operating Temperature:	﹣10℃～+60℃

Voltage:	24V
Capacity:	100Ah
Length:	≤520mm
Width:	≤238mm
Height:	≤220mm
Operating Temperature:	﹣10℃～+60℃

24V 100Ah Deep Cycle LiFePO4 Lithium Ion Battery Pack for Solar System

Deep Cycle LiFePO4 24V 100Ah Lithium Ion Battery Pack

High-quality lithium energy storage battery using long-working-life LiFePO4 cells and high-performance BMS to protect and manage the battery system. Offers wider usage and longer lifespan than traditional batteries.

Product Assembly Components

Part No.	Part Name	Description	Quantity
1	Cell	27175200/3.2V105Ah	8
2	BMS	Charging 100A, Discharging 100A	1
3	Wiring	M8 200A Red & Black Pole	2

Technical Specifications

Typical Capacity	100Ah (0.2C discharge after full charge)
Minimum Capacity	98Ah (0.2C discharge after full charge)
Nominal Voltage	24V
Charge Voltage	29.2V±0.05V
Impedance	80mΩ (Max)
Charging Mode	C.C/C.V.
Standard Charging	Charging Current 20Ah
Fast Charging	Charging Current 50Ah
Standard Charging Time	6.5 Hours
Fast Charging Time	2.6 Hours
Weight	Approx 20Kg
Operating Temperature	Charging: 0℃~45℃ Discharge: -10℃~+60℃
Storage Temperature	-10℃-40℃ (Recommend 25±5℃) Storage capacity should be 40%~50% full charge capacity
Appearance	Without scratch, distortion, contamination and leakage
Overcharge Voltage	3.75±0.05V (Single Cell Monitoring)
Over Discharge Cut Off Voltage	2.2V±0.1V (Single Cell Monitoring)
Over Current	350-450A (Instantaneous Current)
Short Circuit	External Short-circuit Protection (Self-recovery after Disconnection)
Operating Consumption Current	50uA (MAX)
NTC Resistor	/
ESD Test	±4KV
Discharge Current	≤60A
Factory Voltage	12.8-13.6V

Applications

Toys, Home Appliances, Golf Carts, Electric Forklifts, Solar Energy Storage Systems, Electric Forklifts, RV Systems and more.

Battery Quality Features

Support OEM & ODM services
Higher energy density, more stable performance, greater power, and excellent 3% self-discharge rate
Built-in BMS (Battery Management System) prevents overcharging, over-discharging, over-current and short-circuiting
Built-in high/low temperature cut-off function for enhanced safety
Performs 6000+ cycles with design life over 10 years
