Product Details
Place of Origin: Wuhan
Certification: CE UL ISO9001 ISO14001
Model Number: OPzS12-100
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Carton and Wooden Pallet
Delivery Time: 30 Days
Payment Terms: T/T L/C, D/A, D/P
Supply Ability: 10000PCS/30Days
Type: |
12V 100Ah OPzS Battery |
Nominal Voltage: |
12V |
Rated Capacity: |
100Ah |
Battery Container: |
ABS/SAN |
Battery Designed Life: |
More Than 20 Years |
Dimension: |
L405mm X W171mm X H232mm |
Internal Resistance: |
5.0mΩ Fully Charged @ 20℃ |
Application: |
Off Grid Solar Storage Systems |
Type: |
12V 100Ah OPzS Battery |
Nominal Voltage: |
12V |
Rated Capacity: |
100Ah |
Battery Container: |
ABS/SAN |
Battery Designed Life: |
More Than 20 Years |
Dimension: |
L405mm X W171mm X H232mm |
Internal Resistance: |
5.0mΩ Fully Charged @ 20℃ |
Application: |
Off Grid Solar Storage Systems |

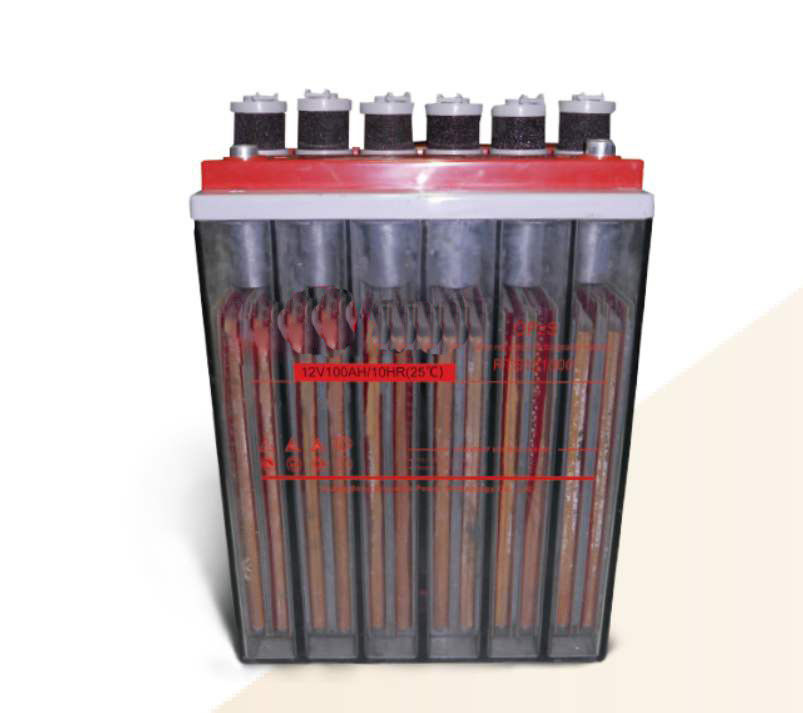

12V 100Ah OPzS Battery For Off Grid Solar Storage Systems
Product Features
• Tubular flooded technology battery • Super long service life and low maintenance
Positive plate :Tubular plate with die cast alloy grid
Negative plate : Balanced Pb-Ca grid for improved recombination efficiency
Separator : Leaf shape rubber separator
Electrolyte : Dilute high purity sulphuric acid of 1.240 specific gravity
Battery Container : SAN
Battery Cover : ABS
Pillar Seal: Double layers epoxy resin seal
Relief Valve : Complete with integrated flame arrestor
Specifications
| Nominal Voltage (V) | 12 |
| Designed Floating Life (20oC) | 20+ Years |
| Nominal Capacity (20oC) | 100 Ah @ C10 (to 1.80Vpc) |
| Demensions |
L405mm x W171mm x H232mm |
| Approx. Weight |
35Kg |
| Terminal Type | Female Copper Insert M8 (torque:10~12N.m) |
| Internal Resistance | Approx. 0.005Ohm (fully charged @ 25°C) |
| Max. Charge Current | 25 A |
| Max. Discharge Current (5S) | 500 A |
| Short Circuit Current | 1350 A |
| Self Discharge | Approx. 3% per month @ 20°C |
|
Ambient Temperature |
Discharge: -20~60°C |
| Float Charge Voltage | 13.5-13.7V @25oC (-3mV / oC/ cell) |
| Equalize Charge Voltage | 14.1-14.5V @25oC |
| Container Material | SAN |
Constant Current Discharge Characteristics: Amps (20°C)
Constant Power Discharge Characteristics: W/cell (20°C)
Charge Characteristic
Discharge Characteristic
Application
Standby Power Applications that Required Highest Levels of Reliability and Security
Advantages
1. 20+ years design life at floating condition.
2. Wide operating temperature range from -40°C to 60°C.
3. Tubular positive plate with prolonged cycle life.
4. Nano Silica gel electrolyte.
5. Lead Calcium die cast grid with improved corrosion resistance capability.
6. Excellent deep discharge recovery capability.
7. Low self-discharge rate and long shelf life (1 year at 20°C)
