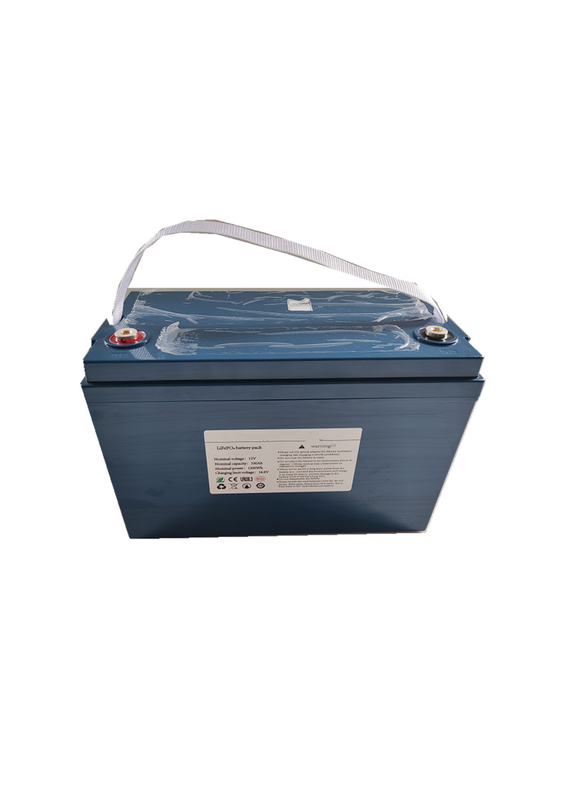

High Stability 12V 100Ah LiFePO4 Lithium Battery with Long Service Life

Name: High Stability 12V 100Ah LiFePO4 Lithium Battery with Long Service Life
Brand: Wuhan Future Intepower Co., Ltd.
SKU: XYS-12100
Availability: InStock

Product Details

Place of Origin: China

Brand Name: FBATTERY

Certification: CE,UL,ROHS

Model Number: XYS-12100

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: Carton

Delivery Time: 20Days

Payment Terms: L/C,D/A,D/P,T/T in advance

Supply Ability: 10000PCS/30Days

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                            Lead Acid Battery 12V 100Ah, 10kg Lead Acid Battery


Cell Type:	LiFePO₄	Rating Voltage:	12.8V
Capacity:	100Ah	Charge Voltage:	14.6V±0.05V
Impedance:	15mΩ（Max）	Size:	LWH=330174214mm
Operating Temperature:	Charging 0~45℃	Storage Temperature:	-10℃-40℃ Recommend（25±5℃）
Weight Approx:	10kg

Cell Type:	LiFePO₄
Rating Voltage:	12.8V
Capacity:	100Ah
Charge Voltage:	14.6V±0.05V
Impedance:	15mΩ（Max）
Size:	LWH=330174214mm
Operating Temperature:	Charging 0~45℃
Storage Temperature:	-10℃-40℃ Recommend（25±5℃）
Weight Approx:	10kg

High Stability 12V 100Ah LiFePO4 Lithium Battery with Long Service Life

High Stability LiFePO4 Lithium Battery Replacement Lead Acid 12V 100Ah Long Service Life

High-performance lithium iron phosphate battery designed as a direct replacement for lead-acid batteries, offering superior stability and extended service life.

Technical Specifications

No	Item	Parameter	Remark
1	Rating Voltage	12.8V
2	Capacity	100Ah	0.2C discharge after full charge
3	Charge Voltage	14.6V±0.05V
4	Impedance	15mΩ(Max)
5	Charging Mode	C.C/C.V.	Constant Current / Constant Voltage
6	Charging Method	Standard Charging: 15A Fast Charging: 50A
7	Charging Time	Standard: 8 Hours Fast: 2.6 Hours
9	Overcharge Voltage	3.75±0.05V
10	Over Discharge Cut Off Voltage	2.5V±0.1V
11	Over Current	300-400A
12	Short Circuit
13	Operating Consumption Current	50uA(MAX)
14	Operating Temperature	Charging: 0~45℃ Discharging: -10~60℃
15	Storage Temperature	-10℃-40℃ Recommend(25±5℃)	Storage capacity should be 40%~50% full charge capacity
16	NTC Resistor	/
17	ESD Test	±4KV
18	Discharge Current	≤100A
19	Factory Voltage	12.8-13.6V	The open circuit state
20	Weight	Approx 10 kg

Storage Guidelines

The battery storage shall be in a clean, dry, and well-ventilated room at temperatures between -5℃ to 35℃. Keep batteries away from fire, heat sources, and corrosive elements.

Batteries should be charged every 3 months during storage. Follow the "first come, first use" principle for both stored cells and batteries in delivery.

The battery storage period is 24 months from warehouse entry. Batteries exceeding this period must undergo thorough inspection. Only applicable batteries may be dispatched to purchasers; non-applicable units shall be rechecked, with the purchaser retaining the right to dispose of defective batteries.
