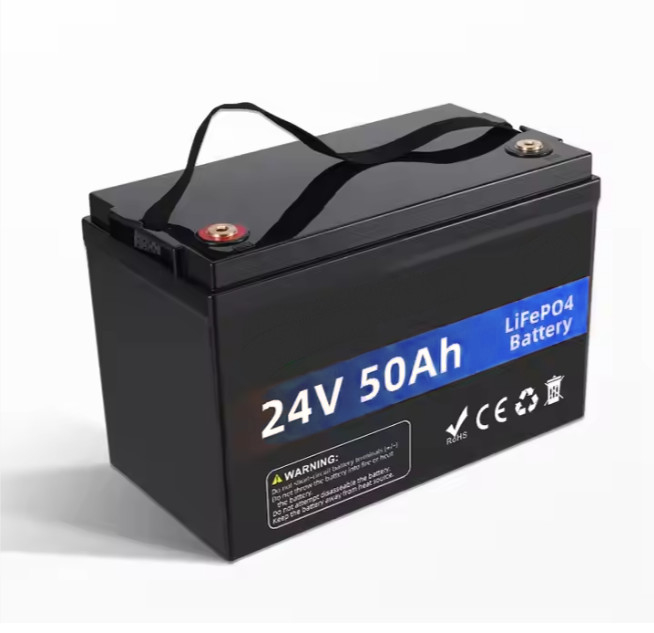

Product Details
Place of Origin: Wuhan,China
Brand Name: FBATTERY
Certification: CE,ROHS,UN38.3
Model Number: 24V50Ah
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: blister card packing,Carton
Delivery Time: 20 work days
Payment Terms: L/C, D/A, D/P, T/T in advance
Supply Ability: 10000PCS/30Days
Voltage: |
24V |
Capacity: |
50Ah |
Length: |
≤266mm |
Width: |
≤170mm |
Height: |
≤141mm |
Operating Temperature: |
﹣10℃～+60℃ |
Voltage: |
24V |
Capacity: |
50Ah |
Length: |
≤266mm |
Width: |
≤170mm |
Height: |
≤141mm |
Operating Temperature: |
﹣10℃～+60℃ |
Products assembly drawing and size refers
| NO | Part Name | Description |
Quantity |
| 1 | Cell |
28148115/3.2V/50Ah |
8 |
| 2 | BMS |
Charging 60A,Discharging 60A |
1 |
| 3 | Wiring |
3135/8# |
1 |
| Item | Specifications |
| Typical Capacity | 50Ah (0.2C discharge after full charge) |
| Minimum Capacity | 49Ah (0.2C discharge after full charge) |
| Nominal Voltage | 24V |
| Charge Voltage | 29.2V±0.05V |
| Impedance | 80mΩ(Max) |
| Charging Mode | C.C/C.V. |
| Standard Charging | Charging Current 15Ah |
| Fast Charging | Charging Current 25Ah |
| Standard Charging Time | 6.5Hours |
| Fast Charging Time | 2.6Hours |
| Weight | Approx10.5Kg |
| Operating temperature | Charging: 0℃~45℃ Discharge:-10℃~+60℃ |
| Storage temperature |
-10℃-40℃ Recommend 25±5℃ Storage capacity should be 40%~50% full charge capacity |
| Appearance | Without scratch, distortion, contamination and leakage |
| Overcharge Voltage | 3.75±0.05V(Single Cell Monitoring) |
| Over Discharge Cut Off Voltage | 2.5V±0.1V(Single Cell Monitoring) |
| Over Current | 150-200A(Instantaneous Current) |
| Short Circuit | External Short-circuit Protection)Self-recovery after Disconnection) |
| Operating Consumption Current | 50uA(MAX) |
| NTC Resistor | / |
| ESD Test | ±4KV |
| Discharge Current | ≤60A |
| The factory Voltage | 12.8-13.6V |
Outline Drawing
Application
Toys, Home Appliances, Golf Carts, Electric Folklifts, Solar Energy Storage Systems, Electric Forklifts, RV Systems and so on.
Battery Quality:
-----Support OEM & ODM.
-----High energy density ,light weight and Easy installation.
-----Fast charge, full charge in 1~3 hours.
-----Perform 3500+ cycles, design life over 10 years .
