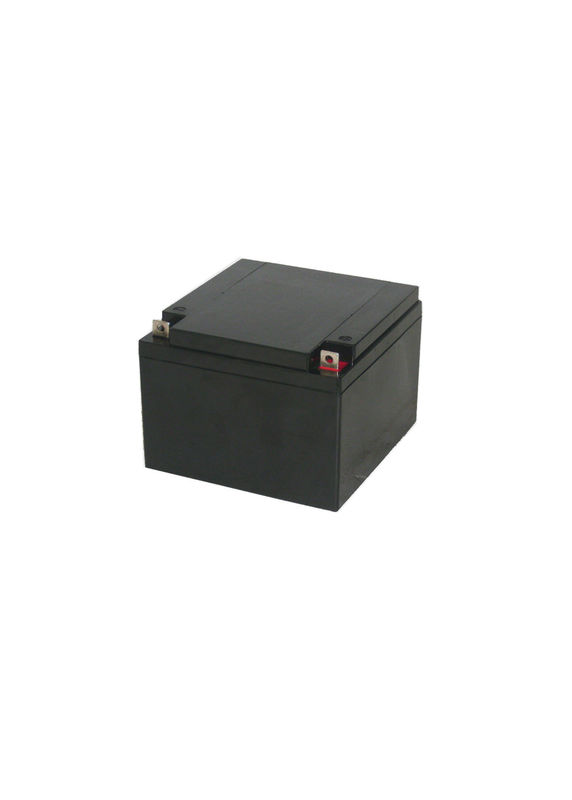

12V24AH Compact Design Rechargeable VRLA Battery with 10 Years Designed Life

Name: 12V24AH Compact Design Rechargeable VRLA Battery with 10 Years Designed Life
Brand: Wuhan Future Intepower Co., Ltd.
SKU: 6GFM-24
Availability: InStock

Product Details

Place of Origin: Wuhan

Brand Name: FBATTERY

Certification: CE UL ISO9001 ISO14001

Model Number: 6GFM-24

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: Carton and Wooden Pallet

Delivery Time: 30DAYS

Payment Terms: T/T L/C,D/A,D/P

Supply Ability: 10000PCS/30Days

Get Best Price

Product Details

Product Description

Ratings & Reviews

Highlight:
                                                                                                                                                                                                                                                                                    vrla lead acid battery, high capacity lead acid battery, 12V24AH SLA Rechargeable Battery


Type:	Rechargeable VRLA Battery	Nominal Voltage:	12V
Nominal Capacity:	24AH@10Hr-rate(to 1.8Vpc)	Dimension:	L175mm X W166mm X H125mm
Battery Designed Life:	10 Years	Approx Weight:	8KG
Terminal Type:	Copper	Container Material:	ABS
Separator:	AGM	Application:	Engine Starting, Communication Equipment, Marine Equipment, Alarm Systems, Computers;

Type:	Rechargeable VRLA Battery
Nominal Voltage:	12V
Nominal Capacity:	24AH@10Hr-rate(to 1.8Vpc)
Dimension:	L175mm X W166mm X H125mm
Battery Designed Life:	10 Years
Approx Weight:	8KG
Terminal Type:	Copper
Container Material:	ABS
Separator:	AGM
Application:	Engine Starting, Communication Equipment, Marine Equipment, Alarm Systems, Computers;

12V24AH Compact Design Rechargeable VRLA Battery with 10 Years Designed Life

12V24AH Compact Design SLA Rechargeable Battery 10 Years Designed Life

12V24AH VRLA Battery Valve Regulated Lead Acid Battery UPS Battery Rechargeable SLA Battery

Product Features

By combining a newly developed corrosion resistance alloy and advanced curing process, we created a range of long life batteries - Duration range. The range features top termination and offers 10 years design life.

Product Structure and Working Principle

Cathode absorption sealed maintenance-free VRLA battery consists of ABS case, grid type plate, AGM separator and electrolyte.

Specification

Type	Rechargeable VRLA Battery
Nominal Voltage	12V
Rated Capacity	24Ah (10 Hr, 10.8V, 25℃)
Approx Dimensions (mm)	L175mm x W166mm x H125mm
Battery Designed Life	10 years
Approx Weight (kg)	8kg
Applicable Temperature	-40℃～60℃
Optimum Temperature	20℃～25℃
Internal Resistance	Approx. 10mΩ (fully charged @ 20°C)
Max. Charge Current	6A (Constant Voltage, Cycle: 14.5～14.9 V/25°C)
Max. Discharge Current (5S)	300A
Self-discharge	Self-discharge rate ＜0.1% per day (20℃)
Materials for Battery Containers and Covers	ABS
Screw Hole Size (mm)	M6

Constant Current Discharge Ratings - Amperes at 25°C

F.V/Time	5min	10min	15min	30min	1h	2h	3h	4h	5h	6h	7h	8h	9h	10h	20h
1.6V	73.0	48.4	38.0	25.2	16.7	8.2	6.1	4.9	4.2	3.7	3.3	2.9	2.7	2.5	1.5
1.65V	67.6	45.5	35.9	24.6	16.3	8.1	6.0	4.9	4.2	3.6	3.2	2.9	2.7	2.5	1.5
1.7V	62.2	42.6	33.7	24.1	15.9	7.9	6.0	4.8	4.1	3.6	3.2	2.9	2.7	2.5	1.5
1.75V	56.8	39.8	31.6	23.5	15.6	7.7	5.9	4.8	4.1	3.6	3.2	2.9	2.7	2.5	1.5
1.8V	51.4	36.9	29.5	22.9	15.2	7.5	5.8	4.7	4.1	3.6	3.2	2.9	2.7	2.5	1.5

Constant Power Discharge Ratings - Watts at 25°C

F.V/Time	5min	10min	15min	30min	1h	2h	3h	4h	5h	6h	7h	8h	9h	10h	20h
1.6V	124.8	83.2	68.8	47.6	31.7	15.7	11.7	9.5	8.2	7.2	6.4	5.8	5.4	5.0	3.0
1.65V	115.6	78.3	65.0	46.5	31.0	15.3	11.6	9.4	8.1	7.2	6.4	5.8	5.3	4.9	3.0
1.70V	106.3	73.4	61.1	45.5	30.3	14.9	11.4	9.2	8.1	7.1	6.4	5.8	5.3	4.9	3.0
1.75V	97.1	68.4	57.2	44.4	29.6	14.6	11.3	9.1	8.1	7.1	6.4	5.8	5.3	4.9	3.0
1.8V	87.9	63.5	53.4	43.3	28.8	14.2	11.2	9.0	8.0	7.0	6.4	5.8	5.3	4.9	2.9

Application Fields

Engine starting, Communication equipment
Fire & security systems
Uninterruptible power supplies
Telecommunication systems
Electronic cash registers
Electronic test equipment
Processor based office machines
Control equipment
Electric powered bicycle and wheelchairs
Geophysical equipment
Marine equipment
Medical equipment
Portable cine & video lights
Solar powered systems
Television & video recorders
Vending machines
Alarm Systems, Computers
Power Tools
Emergency Lighting Systems
Toys
Geophysical Equipment
Vending Machines
Other standby or primary power supplies

Advantages

Good Floating Performance - 12V series VRLA deep cycle batteries feature high-tin alloy grids with strong corrosion resistance, offering float charging life of more than 5 years.
Excellent Over-discharge Tolerance - Utilizes ultra-fine glass fiber separators with high porosity and high wet-elasticity, achieving over 95% restoration after 5 over-discharge cycles.
Super Cycling Ability - Special gel electrolyte additives and curing process improve deep cycle endurance by up to 50%.
Stable Consistency - Precise, quantitative, low temperature, vacuum acid filling method ensures battery stable consistency.
Large Current Discharge Performance - Small plate distance and high pressure tight assembly enhance large current discharge capability.
Safety and Reliability - Patented terminal sealing construction and high-temperature adhesive curing ensure no acid leakage and safe operation.
Maintenance-free - Dry-type design allows gas recombination into water, eliminating the need for water filling.
Various Installation Types - Special AGM separators absorb electrolyte, allowing both vertical and horizontal mounting positions.
