15 Years Design Life AGM Gel Battery with ABS Container and High Cycling Ability for Renewable Energy Systems

Name: 15 Years Design Life AGM Gel Battery with ABS Container and High Cycling Ability for Renewable Energy Systems
Brand: Wuhan Future Intepower Co., Ltd.
SKU: 6GFM-55G
Availability: InStock

Product Details

Place of Origin: WUHAN

Brand Name: FBATTERY

Certification: CE UL ISO9001 ISO14001 OHASA18001

Model Number: 6GFM-55G

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: Carton and Wooden Pallet

Delivery Time: 30Days

Payment Terms: T/T,D/P,L/C

Supply Ability: 10000PCS/Week

Get Best Price

Product Details

Product Description

Ratings & Reviews

Highlight:
                                                                                                                                                                                                                                                                                    solar gel battery, agm gel cell battery


Type:	AGM Gel Battery	Nominal Voltage:	12V
Rated Capacity:	55AH	Battery Case:	ABS
Battery Designed Life:	15 Years	Approx Weight:	16.7 Kg
Dimension:	L230mm X W138mm X H213mm	Applicaton:	UPS Systems, Switchgear, CATV And Telecommunication Systems Applications
Terminal Type:	Female Copper Insert M6	Internal Resistance:	5.8mΩ Fully Charged @ 20℃

Type:	AGM Gel Battery
Nominal Voltage:	12V
Rated Capacity:	55AH
Battery Case:	ABS
Battery Designed Life:	15 Years
Approx Weight:	16.7 Kg
Dimension:	L230mm X W138mm X H213mm
Applicaton:	UPS Systems, Switchgear, CATV And Telecommunication Systems Applications
Terminal Type:	Female Copper Insert M6
Internal Resistance:	5.8mΩ Fully Charged @ 20℃

15 Years Design Life AGM Gel Battery with ABS Container and High Cycling Ability for Renewable Energy Systems

Renewable Energy System AGM Gel Battery 12V55AH ABS Container Materials

12V55AH Hybrid Gel Battery AGM Gel Battery Battery VRLA Gel Battery

Product Summary

By combining newly developed nano gel electrolyte with up-to-date AGM structures, we created the innovative AGM gel battery (G type). This type offers 15 years design life with very high deep cycling capability.

This series is highly suited to telecom outdoor applications, renewable energy systems, and other harsh environment applications.

Product Structure and Working Principle

Positive plate: Thick high Sn low Ca grid minimizes corrosion and prolongs life
Negative plate: Balanced Pb-Ca grid for improved recombination efficiency
Separator: Advanced AGM separator for ultra low float current
Electrolyte: Dilute high purity sulphuric acid with nano gel
Battery container and cover: ABS material
Pillar seal: 100% factory tested, proven two layers epoxy resin seal
Relief valve: Complete with integrated flame arrestor

Specification

Type	AGM Gel Battery
Nominal Voltage	12V
Rated Capacity	55Ah (10 Hr, 10.8V, 25℃)
Approx Dimensions (mm)	L230mm × W138mm × H213mm
Cycle life	≥3 years
Approx Weight (kg)	16.7kg
Applicable Temperature	-40℃～60℃
Optimum Temperature	20℃～25℃
Self-discharge	Self-discharge rate ＜0.1% per day (20℃)
Materials for Battery Containers and Covers	ABS
Screw Hole Size (mm)	M6

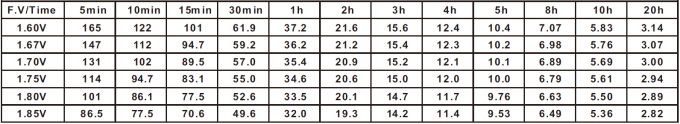

Constant Current Discharge Ratings

Amperes at 25°C

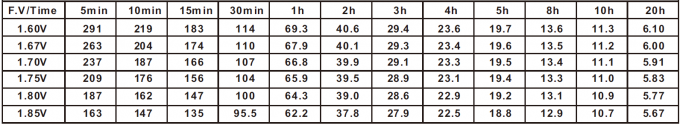

Constant Power Discharge Ratings

Watts at 25°C

Application Fields

This series is highly suited for very unreliable power applications requiring the batteries to provide extra cyclic life performance such as outdoor applications, small renewable energy systems and electric vehicles.

Advantages

1. Long Life

VRLA gel type battery uses high-tin alloy positive grids and thick plates to reduce the utilization of active material. It has special additives. Its 40% DOD cycle life can reach over 3000 times as per the requirement of IEC 60896-22-2004.

2. Super Overdischarge Tolerance

After 5 times of over-discharges which cause the short circuit, battery capacity restoration can reach more than 95%.

3. High Cycling Ability

Special gel electrolyte additives, curing process at high temperature and high humidity are employed to delay the softening of active material, therefore the deep cycle endurance is improved efficaciously, especially the anti-passivation capability of positive plates during reaction when batteries are used for small load and small current discharge.

4. Excellent High-current Performance

Tighten assembly is designed to reduce distance of battery plates, to improve the high current discharge performance.

5. Safety

The rubber O-ring with strong corrosion resistance and the special adhesive are adopted to seal the terminals of the batteries, ensuring no acid leakage from the roots of terminals, and safe and reliable operation.

6. Maintenance Free

Since the design is of low liquid type, the gases generated inside the system is recombined into water; there is no need to add water or acid.

7. Various Installation Types

The special AGM separator can absorb the electrolyte thus there is no free acid inside the battery, therefore both vertical and horizontal positions are allowed when the batteries are to be mounted.
