Product Details
Place of Origin: Wuhan
Brand Name: FBATTERY
Certification: CE UL ISO9001 ISO14001
Model Number: 6GFM-40
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Carton and Wooden Pallet
Delivery Time: 30DAYS
Payment Terms: T/T L/C, D/A, D/P
Supply Ability: 10000PCS/30Days
Type: |
Valve Regulated Lead Acid Battery |
Nominal Voltage: |
12Volt |
Rated Capacity: |
40AH |
Battery Case: |
ABS |
Battery Designed Life: |
10 Years |
Approx Weight: |
12.8KG |
Application: |
Power Station, SPC Exchange |
Screw Hole Size: |
M6 |
Type: |
Valve Regulated Lead Acid Battery |
Nominal Voltage: |
12Volt |
Rated Capacity: |
40AH |
Battery Case: |
ABS |
Battery Designed Life: |
10 Years |
Approx Weight: |
12.8KG |
Application: |
Power Station, SPC Exchange |
Screw Hole Size: |
M6 |

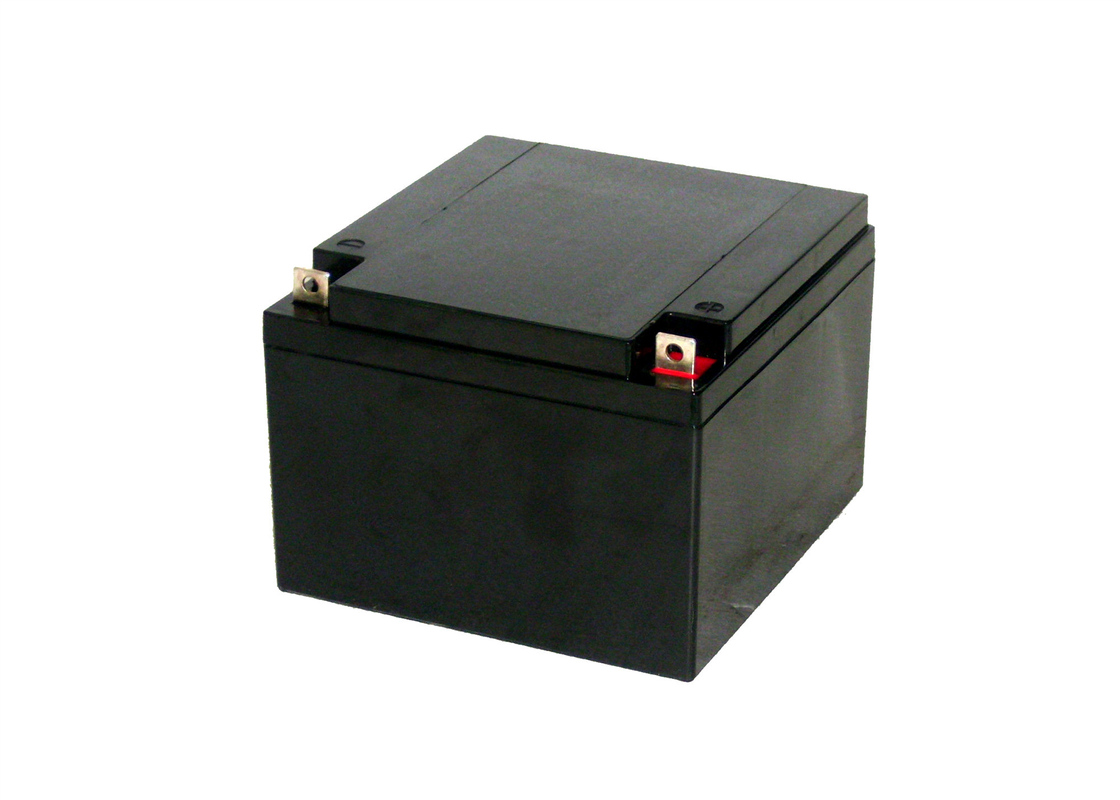

12V 40AH Valve Regulated Lead Acid Battery In UPS Systems Power Station
Valve Regulated Lead Acid Battery features
Valve Regulated Lead Acid Battery adopts high-tin alloy grid which enhance corrosion resistance of plates and lengthen the service
life.High-tight assembly technics and supporting equipments greatly improve charge acceptance and high current discharge performance. Precision vacuum acid filling method,advanced and environmentally friendly container formation technics ensures battery consistency effectively. Post seal structures adopt patented technology of seal structure and high-temperature curing epoxy adhesive, which ensure battery safety and reliability
Function of Valve Regulated Lead Acid Battery
Balance function
Overcurrent protection
Overpressure protection
Short-circuit protection
Overshoot protection
Temperature protection
Overput protection
Specification of Valve Regulated Lead Acid Battery
| Type | VRLA Battery |
| Nominal Voltage | 12V |
| Rated Capacity | 40Ah(10 Hr,10.8V,25℃) |
|
Approx Dimensions(mm) (Length×Width×Height) |
197(mm)×165(mm)×172(mm) |
| Battery designed life | 10 years |
| Approx Weight(kg) | 12.8kg |
| Applicable Temperature | -40℃～60℃ |
| Optimum Temperature | 20℃～25℃ |
| Self-discharge | Self-discharge rate＜0.1% per day ( 20℃ ) |
| Materials for Battery Containers and Covers | ABS |
| Screw Hole Size (mm) | M6 |
Constant Currant Discharge Ratings-amperes at 25°C
| F.V/Time | 5min | 10min | 15min | 30min | 1h | 2h | 3h | 4h | 5h | 6h | 7h | 8h | 9h | 10h | 20h |
| 1.6V | 128.0 | 87.9 | 70.6 | 48.5 | 33.3 | 14.4 | 10.5 | 8.4 | 7.0 | 6.1 | 5.4 | 4.9 | 4.5 | 4.1 | 2.4 |
| 1.65V | 118.5 | 82.7 | 66.6 | 47.4 | 32.6 | 14.1 | 10.4 | 8.3 | 7.0 | 6.1 | 5.4 | 4.9 | 4.4 | 4.1 | 2.4 |
| 1.7V | 109.0 | 77.5 | 62.7 | 46.3 | 31.8 | 13.8 | 10.3 | 8.2 | 7.0 | 6.1 | 5.4 | 4.9 | 4.4 | 4.1 | 2.4 |
| 1.75V | 99.6 | 72.3 | 58.7 | 45.2 | 31.1 | 13.4 | 10.1 | 8.1 | 6.9 | 6.0 | 5.4 | 4.8 | 4.4 | 4.1 | 2.4 |
| 1.8V | 90.1 | 67.1 | 54.7 | 44.1 | 30.3 | 13.1 | 10.0 | 8.0 | 6.9 | 6.0 | 5.4 | 4.8 | 4.4 | 4.1 | 2.4 |
Constant Power Discharge Ratings-watts at 25°C
| F.V/Time | 5min | 10min | 15min | 30min | 1h | 2h | 3h | 4h | 5h | 6h | 7h | 8h | 9h | 10h | 20h |
| 1.6V | 218.8 | 151.2 | 127.8 | 91.7 | 63.3 | 27.4 | 20.2 | 16.1 | 13.8 | 12.0 | 10.7 | 9.7 | 8.8 | 8.1 | 4.7 |
| 1.65V | 202.7 | 142.3 | 120.6 | 89.6 | 61.9 | 26.8 | 19.9 | 15.9 | 13.7 | 12.0 | 10.6 | 9.6 | 8.8 | 8.1 | 4.7 |
| 1.70V | 186.5 | 133.3 | 113.4 | 87.5 | 60.4 | 26.1 | 19.7 | 15.7 | 13.7 | 11.9 | 10.6 | 9.6 | 8.8 | 8.1 | 4.7 |
| 1.75V | 170.3 | 124.4 | 106.2 | 85.4 | 59.0 | 25.5 | 19.4 | 15.5 | 13.6 | 11.9 | 10.6 | 9.6 | 8.7 | 8.1 | 4.7 |
| 1.8V | 154.1 | 115.4 | 99.0 | 83.3 | 57.6 | 24.9 | 19.2 | 15.3 | 13.5 | 11.8 | 10.6 | 9.6 | 8.7 | 8.0 | 4.7 |
Application Fields
Telecommunications, UPS system, standby power system, SPC exchange, marine equipment, power station, switching system, alarm system, fire and security system, control equipment, solar photovoltaic energy field, electric wheelchairs field, medical equipment field, washing machines field and so on.
Advantages
1. Good Floating Performance
12V series VRLA deep cycle batteries are produced through internationally advanced technology and modern equipment and designed by fully type performance test. The positive plate uses high-tin alloy grids with strong corrosion resistance. The float charging life of battery can reach more than 5 years.
2. Excellent over-discharge tolerance
Adopting dedicated ultra-fine glass fiber separators with high porosity and high wet-elasticity, combining with tight assembling technology, the battery has a high tolerance for super over-discharge. After 5 times of over-discharges which cause the short circuit, battery tolerance
restoration can reach more than 95%.
3. Super Cycling Ability
Special gel electrolyte additives, curing process at high temperature and high humidity are employed to delay the softening of active material, therefore the deep cycle endurance is improved up to 50%, especially the anti-passivation (anti barrier layer) capacity of positive plates during
reaction when batteries are used for small load and small current discharge.
4. Stable Consistency
Precise,quantitative,low temperature,vacuum acid filling method,advanced and environmentally friendly container formation technics ensures battery stable consistency.
5. Large Current Discharge Performance
Small plate distance and high pressure tight assembly of plate group could enhance the ability of
large current discharge performance.
6. Safety and Reliability
Our patented terminal sealing construction and the cuing process of the adhesive at high
temperature, ensure no acid leakage from the roots of terminals, and therefore ensure safe and
reliable operation.
7. Maintenance- free
Due to dry-type design, gas produced from the battery internal system would all recombine and
form into water. So the VRLA battery don’t need filling water to achieve battery maintenance-free.
8. Various installation types
The special AGM separators can absorb the electrolyte, thus there is no free acid inside the battery,
and therefore both vertical and horizontal positions are allowed when the battery are to be mounted.
