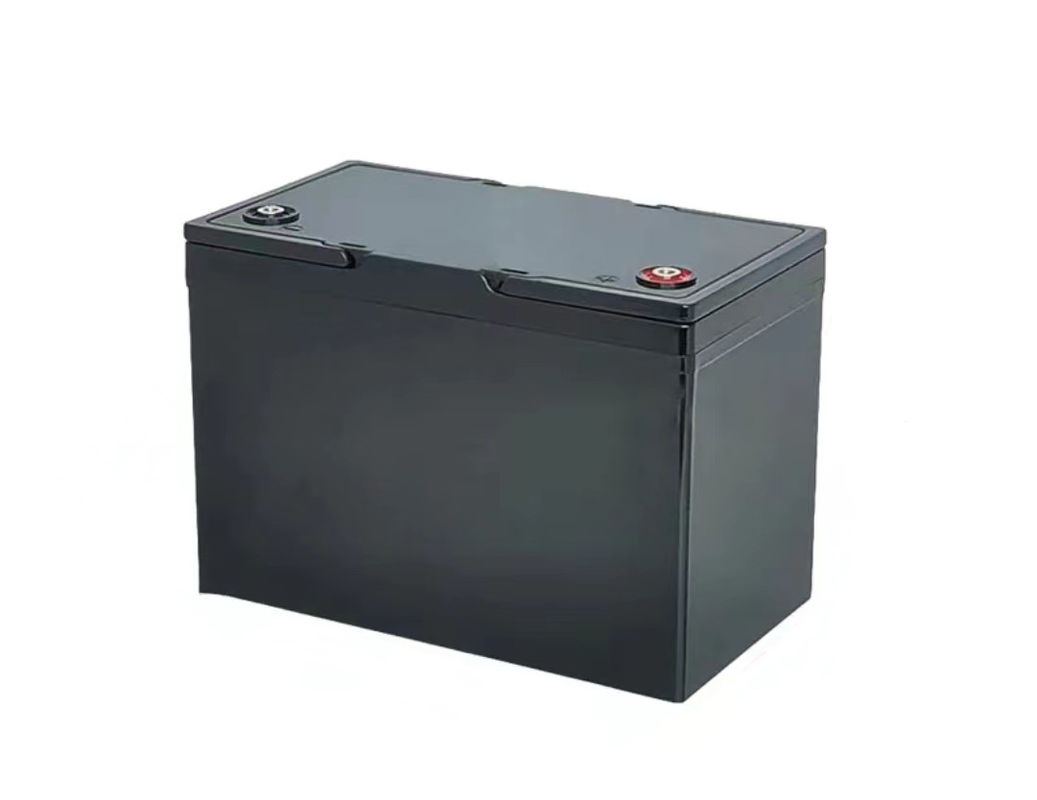

High Capacity 12V 90Ah LiFePO4 Lithium Iron Phosphate Battery with Longer Life

Name: High Capacity 12V 90Ah LiFePO4 Lithium Iron Phosphate Battery with Longer Life
Brand: Wuhan Future Intepower Co., Ltd.
SKU: FB-1290
Availability: InStock

Product Details

Place of Origin: China

Brand Name: FBATTERY

Certification: CE,UL,ROHS

Model Number: FB-1290

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: Carton

Delivery Time: 20Days

Payment Terms: L/C,D/A,D/P,T/T in advance

Supply Ability: 10000PCS/30Days

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                            Lead Acid Battery 12V 90Ah, LiFEPO4 Lead Acid Battery 9.5kg


Cell Type:	LiFePO₄	Rating Voltage:	12.8V
Capacity:	90Ah	Charge Voltage:	14.6V±0.05V
Impedance:	15mΩ（Max）	Size:	LWH=307169208mm
Operating Temperature:	Charging 0~45℃	Storage Temperature:	-10℃-40℃ Recommend（25±5℃）
Weight Approx:	9.5kg

Cell Type:	LiFePO₄
Rating Voltage:	12.8V
Capacity:	90Ah
Charge Voltage:	14.6V±0.05V
Impedance:	15mΩ（Max）
Size:	LWH=307169208mm
Operating Temperature:	Charging 0~45℃
Storage Temperature:	-10℃-40℃ Recommend（25±5℃）
Weight Approx:	9.5kg

High Capacity 12V 90Ah LiFePO4 Lithium Iron Phosphate Battery with Longer Life

High Capacity LiFePO4 Lithium Battery Replacement Lead Acid 12V 90Ah Longer Life

Specifications

No	Item	Parameter	Remark
1	Rating Voltage	12.8V
2	Capacity	90Ah	0.5C discharge after full charge
	Minimum Capacity	85.5AH
3	Charge Voltage	14.6V±0.05V
4	Impedance	15mΩ(Max)
5	Charging Mode	C.C/C.V.	Constant Current / Constant Voltage
6	Charging Method	Standard Charging	Charging Current 12A
	Fast Charging	Charging Current 45A
7	Charging Time	Standard Charging	8 Hours
	Fast Charging	2.6 Hours
9	Overcharge Voltage	3.65±0.05V
10	Over Discharge Cut Off Voltage	2.2V±0.1V
11	Over Current	240-350A
12	Short Circuit
13	Operating Consumption Current	50uA(MAX)
14	Operating Temperature	Charging: 0~45℃ Discharging: -10~60℃
15	Storage Temperature	-10℃-40℃ Recommend(25±5℃)	Storage capacity should be 40%~50% full charge capacity
16	NTC Resistor	/
17	ESD Test	±4KV
18	Discharge current	≤90A
19	The factory voltage	12.8-13.6V	The open circuit state
20	Weight Approx	9.5KG

Storage Guidelines

The battery storage shall be in the clean and dry ventilation room at the temperature of -5～35℃ and shall keep out of fire or heat and avoid touching corrosion elements. The batteries shall be charged every 3 months during storage. Both the stored cells in the process of the battery and the batteries in delivery shall be "first come, first use". The battery storage period is 24 months when into the warehouse. Batteries expired must have a thorough check. Only the applicable batteries can be dispatched to the purchaser; the inapplicable ones shall be rechecked, if it remains, the purchaser shall have the right to dispose bad ones.
