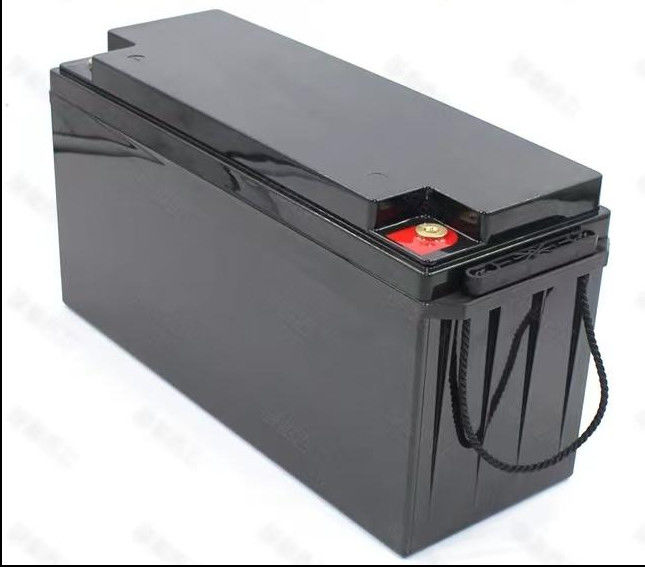

Name: Lengthy Charge Time LiFePO4 Lithium Battery 12V 230Ah Replacement for Lead Acid
Brand: Wuhan Future Intepower Co., Ltd.
SKU: FB-12230
Availability: InStock

Product Details

Place of Origin: China

Brand Name: FBATTERY

Certification: CE,UL,ROHS

Model Number: FB-12230

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: Carton

Delivery Time: 20Days

Payment Terms: L/C,D/A,D/P,T/T in advance

Supply Ability: 10000PCS/30Days

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                    Lead Acid Battery 12V 230Ah, CV Mode Lead Acid Battery


Rating Voltage:	12.8V	Capacity:	230Ah
Charge Voltage:	14.6V±0.05V	Impedance:	10mΩ（Max）
Size:	LWH=490171240mm	Operating Temperature:	Charging 0~45℃
Storage Temperature:	-10℃-40℃ Recommend（25±5℃）	Weight Approx:	20.8kg

Rating Voltage:	12.8V
Capacity:	230Ah
Charge Voltage:	14.6V±0.05V
Impedance:	10mΩ（Max）
Size:	LWH=490171240mm
Operating Temperature:	Charging 0~45℃
Storage Temperature:	-10℃-40℃ Recommend（25±5℃）
Weight Approx:	20.8kg

Lengthy Charge Time LiFePO4 Lithium Battery 12V 230Ah Replacement for Lead Acid

Lengthy Charge Time LiFePO4 Lithium Battery Replacement Lead Acid 12V 230Ah

Advanced LiFePO4 lithium battery designed as a direct replacement for lead acid batteries, featuring extended charge time capabilities and high capacity performance.

Technical Specifications

No	Item	Parameter	Remark
1	Rating Voltage	12.8V
2	Capacity	230Ah	0.5C discharge after full charge
	Minimum Capacity	220AH
3	Charge Voltage	14.6V±0.05V
4	Impedance	10mΩ(Max)
5	Charging Mode	C.C/C.V.	Constant Current/Constant Voltage
6	Charging Method	Standard Charging	Charging Current 30A
		Fast Charging	Charging Current 100A
7	Charging Time	Standard Charging	8.5 Hours
		Fast Charging	2.8 Hours
9	Overcharge Voltage	3.65±0.05V
10	Over Discharge Cut Off Voltage	2.2V±0.1V
11	Over Current	250-400A
12	Short Circuit
13	Operating Consumption Current	50uA(MAX)
14	Operating Temperature	Charging: 0~45℃ Discharging: -10~60℃
15	Storage Temperature	-10℃-40℃ Recommend (25±5℃)	Storage capacity should be 40%~50% full charge capacity
16	NTC Resistor	/
17	ESD Test	±4KV
18	Discharge current	≤200A
19	The factory voltage	12.8-13.6V	The open circuit state
20	Weight Approx	20.8KG

Storage Guidelines

The battery storage shall be in a clean and dry ventilation room at the temperature of -5～35℃ and shall be kept away from fire or heat sources while avoiding contact with corrosive elements.

Batteries shall be charged every 3 months during storage
Both stored cells in process and batteries in delivery shall follow "first come, first use" principle
The battery storage period is 24 months when placed into warehouse
Batteries expired must have a thorough check before use
Only applicable batteries can be dispatched to the purchaser
Inapplicable batteries shall be rechecked and disposed if necessary
