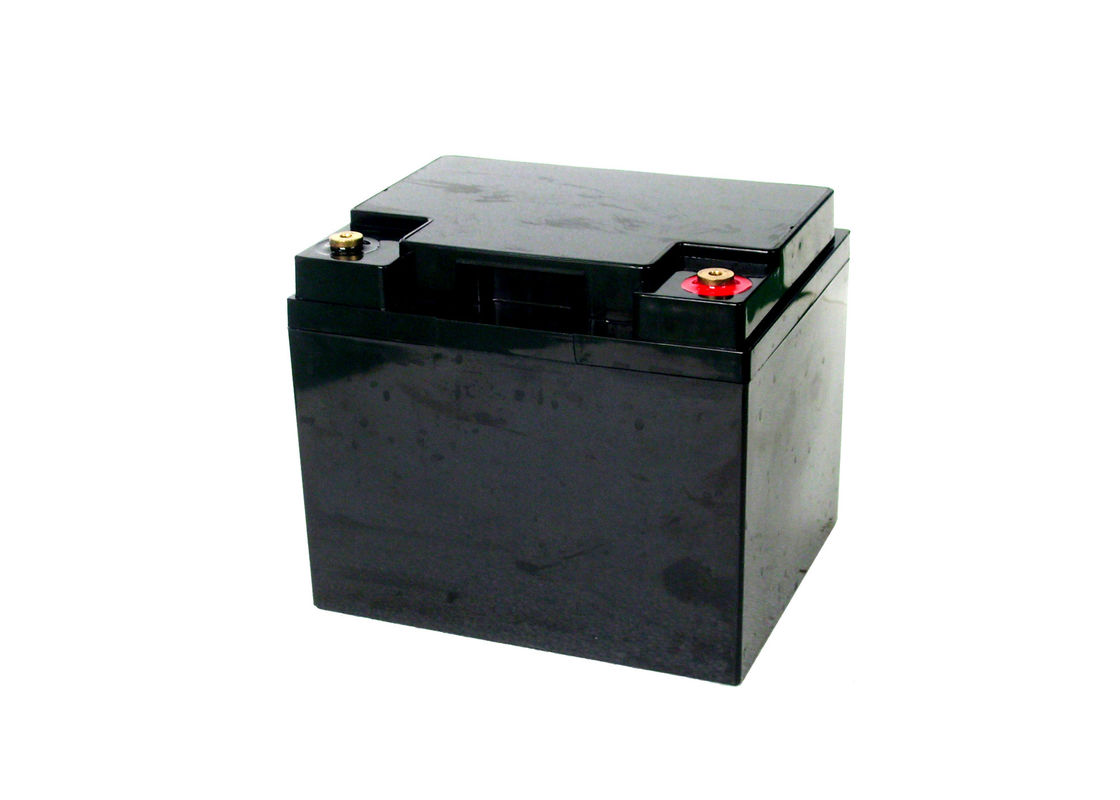

12V40AH AGM Gel Battery with High Cycling Capability and 15 Years Design Life

Name: 12V40AH AGM Gel Battery with High Cycling Capability and 15 Years Design Life
Brand: Wuhan Future Intepower Co., Ltd.
SKU: 6GFM-40G
Availability: InStock

Product Details

Place of Origin: Wuhan

Brand Name: FBATTERY

Certification: CE UL ISO9001 ISO14001 OHSAS18001

Model Number: 6GFM-40G

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: Carton and Wooden Pallet

Delivery Time: 30DAYS

Payment Terms: T/T L/C,D/A,D/P

Supply Ability: 10000PCS/30Days

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                    AGM Gel Battery Maintenance Free, 12V40AH High Cycling Capability Battery, 12V40AH AGM Gel Battery


Type:	AGM Gel Battery	Nominal Voltage:	12V
Rated Capacity:	40AH	Battery Case:	ABS
Battery Designed Life:	15 Years	Approx Weight:	14KG
Application:	Solar System UPS Systems Telecommunications	Screw Hole Size:	M6
Dimension:	197(mm)×165(mm)×172(mm)	Internal Resistance:	5.6mΩ Fully Charged @ 20℃

Type:	AGM Gel Battery
Nominal Voltage:	12V
Rated Capacity:	40AH
Battery Case:	ABS
Battery Designed Life:	15 Years
Approx Weight:	14KG
Application:	Solar System UPS Systems Telecommunications
Screw Hole Size:	M6
Dimension:	197(mm)×165(mm)×172(mm)
Internal Resistance:	5.6mΩ Fully Charged @ 20℃

12V40AH AGM Gel Battery with High Cycling Capability and 15 Years Design Life

12V40AH AGM Gel Battery Maintenance Free High Cycling Capability Battery

Product Summary

By combining newly developed nano gel electrolyte with advanced AGM structures, we created the innovative AGM gel battery (G type). This type offers 15 years design life with exceptional deep cycling capability.

This series is highly suited for telecom outdoor applications, renewable energy systems, and other harsh environment applications.

Product Structure and Working Principle

Positive plate: Thick high Sn low Ca grid minimizes corrosion and prolongs life
Negative plate: Balanced Pb-Ca grid for improved recombination efficiency
Separator: Advanced AGM separator for ultra low float current
Electrolyte: Dilute high purity sulphuric acid with nano gel
Battery container and cover: ABS material
Pillar seal: 100% factory tested, proven two layers epoxy resin seal
Relief valve: Complete with integrated flame arrestor

Specification

Type VRLA Battery

Nominal Voltage 12V

Rated Capacity 40Ah (10 Hr, 10.8V, 25℃)

Dimensions 197mm × 165mm × 172mm

Designed Life 10 years

Weight 12.8kg

Operating Temperature -40℃ to 60℃

Optimum Temperature 20℃ to 25℃

Self-discharge <0.1% per day (20℃)

Container Material ABS

Screw Hole Size M6

Constant Current Discharge Ratings

F.V/Time	5min	10min	15min	30min	1h	2h	3h	4h	5h	6h	7h	8h	9h	10h	20h
1.6V	128.0	87.9	70.6	48.5	33.3	14.4	10.5	8.4	7.0	6.1	5.4	4.9	4.5	4.1	2.4
1.65V	118.5	82.7	66.6	47.4	32.6	14.1	10.4	8.3	7.0	6.1	5.4	4.9	4.4	4.1	2.4
1.7V	109.0	77.5	62.7	46.3	31.8	13.8	10.3	8.2	7.0	6.1	5.4	4.9	4.4	4.1	2.4
1.75V	99.6	72.3	58.7	45.2	31.1	13.4	10.1	8.1	6.9	6.0	5.4	4.8	4.4	4.1	2.4
1.8V	90.1	67.1	54.7	44.1	30.3	13.1	10.0	8.0	6.9	6.0	5.4	4.8	4.4	4.1	2.4

Constant Power Discharge Ratings

F.V/Time	5min	10min	15min	30min	1h	2h	3h	4h	5h	6h	7h	8h	9h	10h	20h
1.6V	218.8	151.2	127.8	91.7	63.3	27.4	20.2	16.1	13.8	12.0	10.7	9.7	8.8	8.1	4.7
1.65V	202.7	142.3	120.6	89.6	61.9	26.8	19.9	15.9	13.7	12.0	10.6	9.6	8.8	8.1	4.7
1.70V	186.5	133.3	113.4	87.5	60.4	26.1	19.7	15.7	13.7	11.9	10.6	9.6	8.8	8.1	4.7
1.75V	170.3	124.4	106.2	85.4	59.0	25.5	19.4	15.5	13.6	11.9	10.6	9.6	8.7	8.1	4.7
1.8V	154.1	115.4	99.0	83.3	57.6	24.9	19.2	15.3	13.5	11.8	10.6	9.6	8.7	8.0	4.7

Application Fields

Solar Power System, Wind Energy Storage System, UPS systems, switchgear, CATV and telecommunication systems applications, electric wheelchairs field, medical equipment field, washing machines field and more.

Key Advantages

Long Life: VRLA gel type battery uses high-tin alloy positive grids and thick plates to reduce active material utilization. 40% DOD cycle life can reach over 3000 times as per IEC 60896-22-2004 requirements.
Super Overdischarge Tolerance: After 5 over-discharges causing short circuits, battery capacity restoration reaches over 95%.
High Cycling Ability: Special gel electrolyte additives and curing process delay active material softening, improving deep cycle endurance and anti-passivation capability.
Excellent High-current Performance: Tight assembly design reduces plate distance, improving high current discharge performance.
Safety: Corrosion-resistant rubber O-ring and special adhesive seal terminals, ensuring no acid leakage and reliable operation.
Maintenance Free: Low liquid design recombines generated gases into water; no need to add water or acid.
Various Installation Types: Special AGM separator absorbs electrolyte, allowing both vertical and horizontal mounting positions.
