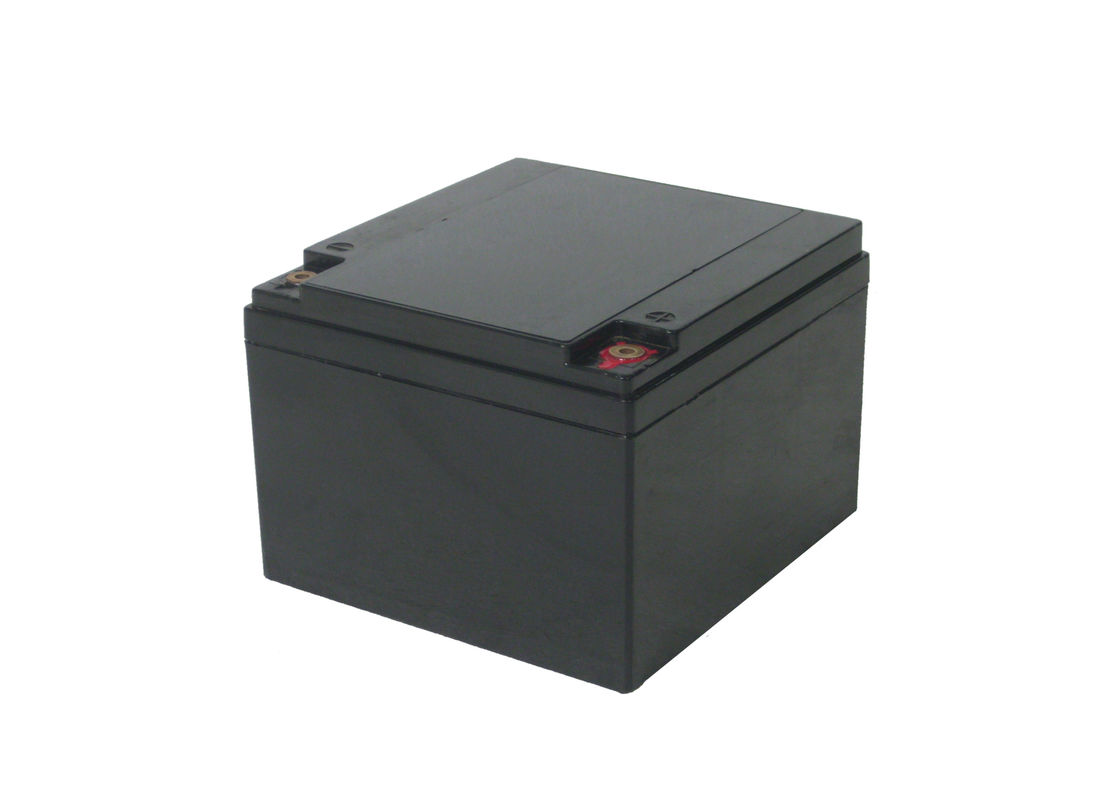

12V 24Ah VRLA Lead Acid Battery with Copper Terminal and Maintenance Free Design

Name: 12V 24Ah VRLA Lead Acid Battery with Copper Terminal and Maintenance Free Design
Brand: Wuhan Future Intepower Co., Ltd.
SKU: 6GFM-24
Availability: InStock

Product Details

Place of Origin: Wuhan

Certification: CE UL ISO9001 ISO14001

Model Number: 6GFM-24

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: Carton and Wooden Pallet

Delivery Time: 30DAYS

Payment Terms: T/T L/C,D/A,D/P

Supply Ability: 10000PCS/30Days

Get Best Price

Product Details

Product Description

Ratings & Reviews

Highlight:
                                                                                                                                                                                                                                    24ah Vrla Lead Acid Battery, 12 Volt Vrla Lead Acid Battery, 12 Volt 24ah sealed valve regulated battery


Type:	Vrla Lead Acid Battery	Nominal Voltage:	12Volt
Nominal Capacity:	24ah	Dimension:	L175mm X W166mm X H125mm
Approx Weight:	8KG	Terminal Type:	Copper
Container Material:	ABS	Separator:	AGM

Type:	Vrla Lead Acid Battery
Nominal Voltage:	12Volt
Nominal Capacity:	24ah
Dimension:	L175mm X W166mm X H125mm
Approx Weight:	8KG
Terminal Type:	Copper
Container Material:	ABS
Separator:	AGM

12V 24Ah VRLA Lead Acid Battery with Copper Terminal and Maintenance Free Design

12 Volt 24ah VRLA Lead Acid Battery Rechargeable Copper Terminal

Product Overview

High-performance 12V 24Ah VRLA (Valve Regulated Lead Acid) battery with copper terminals, designed for reliable power in various industrial and commercial applications.

Key Features

High-purity raw materials
Low self-discharge rate
No air leakage or liquid leakage
Small internal resistance with excellent high current discharge performance
Unique formula for superior deep discharge recovery
Wide working temperature range: -40℃ to 60℃

Technical Specifications

Type	VRLA Lead Acid Battery
Nominal Voltage	12V
Rated Capacity	24Ah (10 Hr, 10.8V, 25℃)
Dimensions (L×W×H)	175mm × 166mm × 125mm
Design Life	10 years
Weight	8kg
Operating Temperature	-40℃ to 60℃
Optimum Temperature	20℃ to 25℃
Internal Resistance	Approx. 10mΩ (fully charged @ 20°C)
Max Charge Current	6A (Constant Voltage, Cycle: 14.5-14.9V/25°C)
Max Discharge Current (5S)	300A
Self-discharge Rate	<0.1% per day (20℃)
Container Material	ABS
Screw Hole Size	M6

Constant Current Discharge Ratings (Amperes at 25°C)

F.V/Time	5min	10min	15min	30min	1h	2h	3h	4h	5h	6h	7h	8h	9h	10h	20h
1.6V	73.0	48.4	38.0	25.2	16.7	8.2	6.1	4.9	4.2	3.7	3.3	2.9	2.7	2.5	1.5
1.65V	67.6	45.5	35.9	24.6	16.3	8.1	6.0	4.9	4.2	3.6	3.2	2.9	2.7	2.5	1.5
1.7V	62.2	42.6	33.7	24.1	15.9	7.9	6.0	4.8	4.1	3.6	3.2	2.9	2.7	2.5	1.5
1.75V	56.8	39.8	31.6	23.5	15.6	7.7	5.9	4.8	4.1	3.6	3.2	2.9	2.7	2.5	1.5
1.8V	51.4	36.9	29.5	22.9	15.2	7.5	5.8	4.7	4.1	3.6	3.2	2.9	2.7	2.5	1.5

Constant Power Discharge Ratings (Watts at 25°C)

F.V/Time	5min	10min	15min	30min	1h	2h	3h	4h	5h	6h	7h	8h	9h	10h	20h
1.6V	124.8	83.2	68.8	47.6	31.7	15.7	11.7	9.5	8.2	7.2	6.4	5.8	5.4	5.0	3.0
1.65V	115.6	78.3	65.0	46.5	31.0	15.3	11.6	9.4	8.1	7.2	6.4	5.8	5.3	4.9	3.0
1.70V	106.3	73.4	61.1	45.5	30.3	14.9	11.4	9.2	8.1	7.1	6.4	5.8	5.3	4.9	3.0
1.75V	97.1	68.4	57.2	44.4	29.6	14.6	11.3	9.1	8.1	7.1	6.4	5.8	5.3	4.9	3.0
1.8V	87.9	63.5	53.4	43.3	28.8	14.2	11.2	9.0	8.0	7.0	6.4	5.8	5.3	4.9	2.9

Application Fields

Electronic cash registers
Electronic test equipment
Processor based office machines
Control equipment
Electric powered bicycles and wheelchairs
Geophysical equipment
Marine equipment
Medical equipment
Portable cine & video lights
Solar powered systems
Television & video recorders
Vending machines
Alarm Systems, Computers
Power Tools
Emergency Lighting Systems
Toys
Geophysical Equipment
Vending Machines
Other standby or primary power supplies

Technical Advantages

1. Good Floating Performance

12V series VRLA deep cycle batteries feature high-tin alloy grids with strong corrosion resistance, providing float charging life exceeding 5 years.

2. Excellent Over-discharge Tolerance

Utilizing ultra-fine glass fiber separators with tight assembling technology, the battery maintains over 95% restoration capacity after multiple over-discharge cycles.

3. Superior Cycling Ability

Special gel electrolyte additives and curing processes enhance deep cycle endurance by 50%, with excellent anti-passivation capacity during small current discharge.

4. Stable Consistency

Precise vacuum acid filling and environmentally friendly container formation ensure consistent battery performance and reliability.

5. Large Current Discharge Performance

Small plate distance and high-pressure assembly enhance large current discharge capabilities for demanding applications.

6. Safety and Reliability

Patented terminal sealing construction and high-temperature curing process prevent acid leakage, ensuring safe and reliable operation.

7. Maintenance-free Operation

Dry-type design allows complete gas recombination, eliminating the need for water filling and ensuring true maintenance-free operation.
